Nggunakake serat optik berwarna, integrasi sing dhuwur
Aramid Yam minangka Anggota Kekuwatan Nggawe kabel duwe kinerja kekuatan sing apik banget
Bahan njaba yaiku tahan karat, anti banyu, tahan UV, Flame-Retardant lan ramah lingkungan.
Indoor Sembarang Distribusi Kabel
Kabel pusat data
Temokake standar YD / T 1258.4, Icea-596, GR-409, IEC 60794-20 / 21; Produk PVC sing disertifikasi dening Ul, Ofnr lan OFNP; Produk lszh nggunakake bahan sing beda kanggo ketemu IEC60332-1 utawa IEc60332-C.

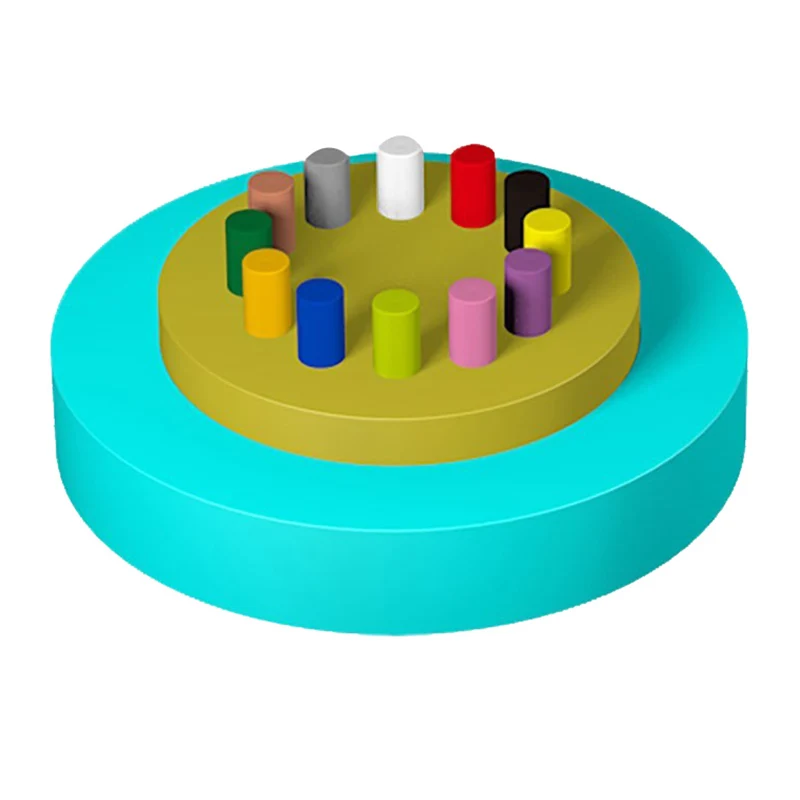

1. Serat
2. Yam Aramid
3 .. jaket
|
Model kabel |
Kabel Diameter (Ref) (mm) |
Bobot kabel (Ref) (kg / km) |
Kekuwatan tensile Jangka panjang / jangka pendek (N) |
Bending radius Dinamika / statis (mm) |
|
|
Jaket Pvc |
Jaket lszh |
||||
|
12 |
3.0 ± 0,2 |
4.8 |
6.3 |
30/100 |
20d / 10d |
|
24 |
3.6 ± 0.2 |
6.5 |
8.0 |
50/150 |
20d / 10d |
|
Jinis serat |
Attenuation |
OFL |
Bandwidth Mode Efektif |
10 Gbit Ethernet Link Link |
Radius Bend minimal |
|||
|
Kondisi |
1310 / 1550nm |
850 / 1300NM |
850 / 1300NM |
850nm |
850nm |
/ |
||
|
Nilai khas |
Nilai maksimal |
Nilai khas |
Nilai maksimal |
|||||
|
Unit |
db / km |
db / km |
db / km |
db / km |
MHz.KM |
MHz.KM |
m |
mm |
|
G657a1 |
0.36 / 0.22 |
0,5 / 0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657a2 |
0.36 / 0.22 |
0,5 / 0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
50/125 |
--- |
--- |
3.0 / 1.0 |
3.5 / 1,5 |
≥500 / 500 |
--- |
--- |
30 |
|
62.5 / 125 |
--- |
--- |
3.0 / 1.0 |
3.5 / 1,5 |
≥200 / 500 |
--- |
--- |
30 |
|
Om3 |
--- |
--- |
3.0 / 1.0 |
3.5 / 1,5 |
≥1500 / 500 |
≥2000 |
≤300 |
30 |
|
Om4 |
--- |
--- |
3.0 / 1.0 |
3.5 / 1,5 |
≥3500 / 500 |
≥4700 |
≤550 |
30 |
Suhu / Panyimpen / Panyimpen / Suhu: -20 ℃ - + 60 ℃, suhu instalasi: -5 ℃ - + 50 ℃
