Bisa diinstal tanpa mateni kekuwatan
Adopot ing sarung, kanthi kinerja anti-nelusuri sing apik banget
Bobot entheng lan diameter kabel cilik nyuda pengaruh es lan angin lan beban ing menara lan ndhukung
Dawane jembar gedhe lan jangkoan paling gedhe luwih saka 1000m
Kekuatan tene lan karakteristik sing apik banget
Jangkung Urip Desain luwih saka 30 taun
Desain kabeh ndhukung delelellric kanthi kabel serat optik huruf optik kanthi lengkap, kanthi kahanan nyata garis tenaga lan cocog kanggo garis transmisi voltase sing beda-beda tingkat. Kanggo 10KV lan garis listrik 35KV, sheath poliethelin (pe) bisa digunakake; Kanggo 110KV lan 220KV Power Garis, arah hang kabel optik kudu ditemtokake kanthi ngitung kekuwatan lapangan listrik lan nggunakake sarung ing njaba. Ing wektu sing padha, jumlah Aramid lan proses twisting sing sampurna dirancang kanggo nyukupi aplikasi saka macem-macem span.
Kabel Adss tundhuk karo standar iee 1222 uga IEC 60794-1.

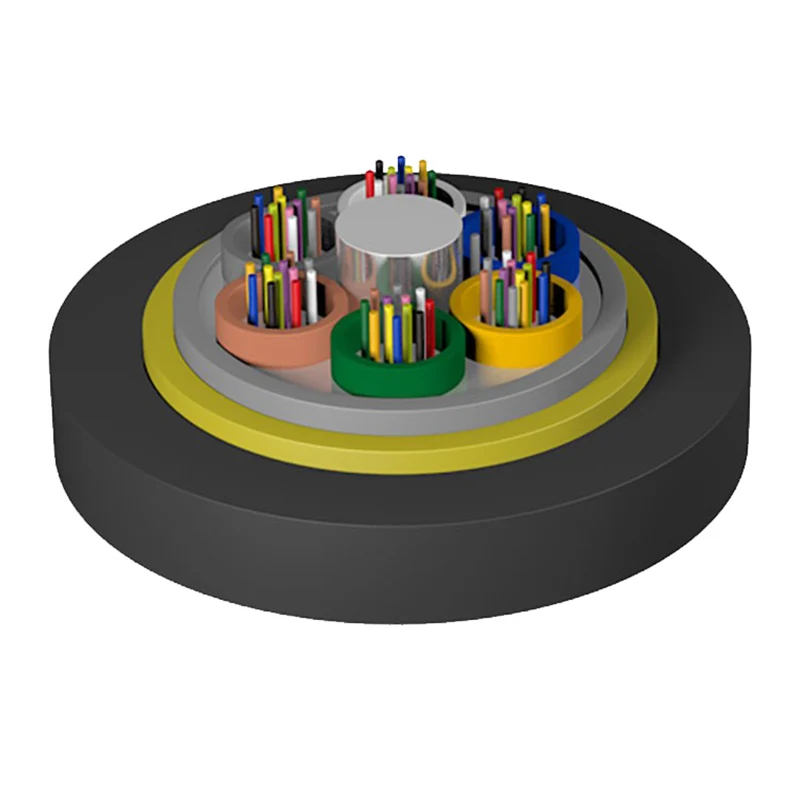

1. Anggota Kekuwatan Frp
2 .. Serat
3. Senyawa Isi Tube
4 .. tabung longgar
5. Senyawa Isi Kabel
6. Pe biji
7. Benang Aramid
8 .. pe / ing njaba sarung
|
Ref. Diameter njaba (mm) |
Ref. Bobot (kg / km) |
Rec. Saben dina max. Tension kerja (kn) |
Tegangan kerja sing diidini (kn) |
Kekuwatan istirahat (kn) |
Anggota Strenght CSA (Mm2) |
Modulus saka kelenturan (kN/mm2) |
Koefision ekspansi panas × 10-6 / k |
Span sing cocog (NESC Standard, M) |
||||
|
PE SHEATH |
Ing sarung |
A |
B |
C |
D |
|||||||
|
11.8 |
117 |
124 |
1.5 |
4 |
10 |
4.6 |
7.6 |
1.8 |
160 |
100 |
140 |
100 |
|
12.0 |
121 |
129 |
2.25 |
6 |
15 |
7.6 |
8.3 |
1.5 |
230 |
150 |
200 |
150 |
|
12.3 |
126 |
134 |
3.0 |
8 |
20 |
10.35 |
9.45 |
1.3 |
300 |
200 |
290 |
200 |
|
12.6 |
133 |
141 |
3.6 |
10 |
24 |
13.8 |
10.8 |
1.2 |
370 |
250 |
350 |
250 |
|
12.8 |
138 |
145 |
4.5 |
12 |
30 |
14.3 |
11.8 |
1.0 |
420 |
280 |
400 |
280 |
|
13.1 |
145 |
153 |
5.4 |
15 |
36 |
18.4 |
13.6 |
0.9 |
480 |
320 |
460 |
320 |
|
13.5 |
155 |
163 |
6.75 |
18 |
45 |
22.0 |
16.4 |
0.6 |
570 |
380 |
550 |
380 |
|
13.8 |
163 |
171 |
7.95 |
22 |
53 |
26.4 |
18.0 |
0.3 |
670 |
460 |
650 |
460 |
|
14.4 |
177 |
186 |
9.0 |
26 |
60 |
32.2 |
19.1 |
0.1 |
750 |
530 |
750 |
510 |
|
14.6 |
182 |
191 |
10.5 |
28 |
70 |
33.0 |
19.6 |
0.1 |
800 |
560 |
800 |
560 |
|
14.8 |
195 |
204 |
12.75 |
34 |
85 |
40.0 |
20.1 |
0.1 |
880 |
650 |
880 |
650 |
Simpenan / Suhu operasi: -40 ℃ - + 70 ℃
|
Jinis optik serat |
(+ 20 ℃) |
Bandwidth |
Aperture angka |
Ngethok gelombang kabel optik |
||||
|
@ 850nm |
@ 1300nm |
@ 1310nm |
@ 1550nm |
@ 850nm |
@ 1300nm |
|||
|
G.652 |
--- |
--- |
≤0.36db / km |
≤0.22db / Km |
--- |
--- |
--- |
≤1260nm |
|
G.655 |
--- |
--- |
≤0.40db / km |
≤0.23db / km |
--- |
--- |
--- |
≤1450nm |
|
50 / 125μμm |
≤3.3db / km |
≤1.2db / km |
--- |
--- |
≥500mhz · km |
≥500mhz · km |
0.200 ± 0,015 wis |
--- |
|
62.5 / 125μm |
≤3.5db / km |
≤1.2db / km |
--- |
--- |
≥200MHZ · km |
≥500mhz · km |
0.275 ± 0,015 wis |
--- |
Cathetan:
a. Mung bagean kabel Ads sing didaptar ing meja, kabel Adss karo span liyane bisa dadi priksaan wong.
b. Spesifikasi ing meja yaiku kondhisi manawa ora ana bedane sing dhuwur lan instalasi SAG yaiku 1%
c. Count Serat yaiku 2 nganti 72, identifikasi serat netepi standar nasional
