Kinerja mekanik lan suhu sing apik
Bahan tabung longgar dhewe duwe resistensi hidrolisis sing apik lan kekuatan sing dhuwur
Rintangan lan lemes komprèsi sing apik
Anggota Kekudung Aramid Benang njamin kekuatan tsile
PSP nambahake kelembapan
Diameter cilik, bobot entheng lan instalasi sing ramah
Comply karo standar YD / T 1770, ICEA.596, GR 409, IEC 60794, IEC 332-1 utawa IEC 332-3c.

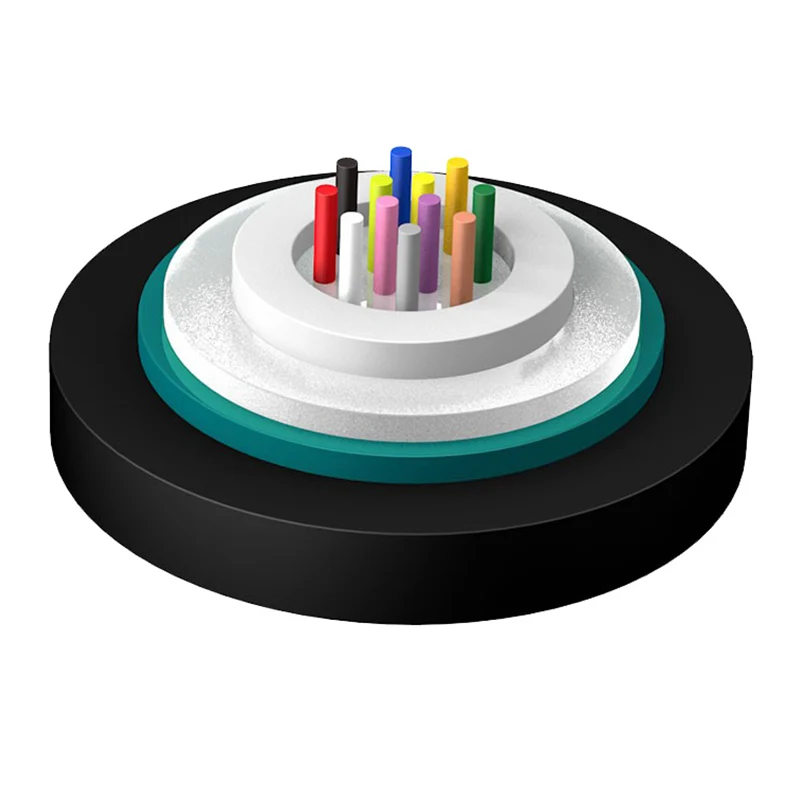

1. Serat
2. Senyawa Isi Tube
3 .. tabung longgar
4. Benang Aramid
5. Psp
6 .. Jaket lszh
|
Model kabel |
Count regiber |
Bobot kabel (Ref) (kg / km) |
Kekuwatan tensile Jangka panjang / jangka pendek |
Rintangan crush Jangka panjang / jangka pendek (N / 100mm) |
Bending radius Dinamika / statis (mm) |
|
ABC-IIS-ZK-2 ~ 12XN |
2 ~ 12 |
80 |
200/660 |
300/1000 |
10d / 20d |
|
ABC-IIS-ZK-14 ~ 24XN |
14 ~ 24 |
102 |
200/660 |
300/1000 |
10d / 20d |
|
Jinis serat |
Attenuation |
OFL |
Bandwidth Mode Efektif |
10 Gbit Ethernet Link Link |
Radius Bend minimal |
|||
|
Kondisi |
1310 / 1550nm |
850 / 1300NM |
850 / 1300NM |
850nm |
850nm |
/ |
||
|
Nilai khas |
Nilai maksimal |
Nilai khas |
Nilai maksimal |
|||||
|
Unit |
db / km |
db / km |
db / km |
db / km |
MHz.KM |
MHz.KM |
m |
mm |
|
G652d |
0.36 / 0.22 |
0,5 / 0.4 |
--- |
--- |
--- |
--- |
--- |
16 |
|
G657a1 |
0.36 / 0.22 |
0,5 / 0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657a2 |
0.36 / 0.22 |
0,5 / 0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
50/125 |
--- |
--- |
3.0 / 1.0 |
3.5 / 1,5 |
≥500 / 500 |
--- |
--- |
30 |
|
62.5 / 125 |
--- |
--- |
3.0 / 1.0 |
3.5 / 1,5 |
≥200 / 500 |
--- |
--- |
30 |
|
Om3 |
--- |
--- |
3.0 / 1.0 |
3.5 / 1,5 |
≥1500 / 500 |
≥2000 |
≤300 |
30 |
|
Om4 |
--- |
--- |
3.0 / 1.0 |
3.5 / 1,5 |
≥3500 / 500 |
≥4700 |
≤550 |
30 |
Suhu / Panyimpen / Panyimpen / Suhu: -20 ℃ - + 60 ℃, suhu instalasi: -5 ℃ - + 50 ℃
