1. Umum

1.1 Katrangan

Box Distribusi Optik Pre-Connected minangka peralatan simpul FTT sing paling maju, nyedhiyani sambungan cepet lan dipercaya, perlindungan lan manajemen sing apik kanggo jaringan FTTX.

Jenis Produksi	Klasifikasi
GFS-004-002C	Kothak Distribusi Kabel Serat Optik sing Konektor

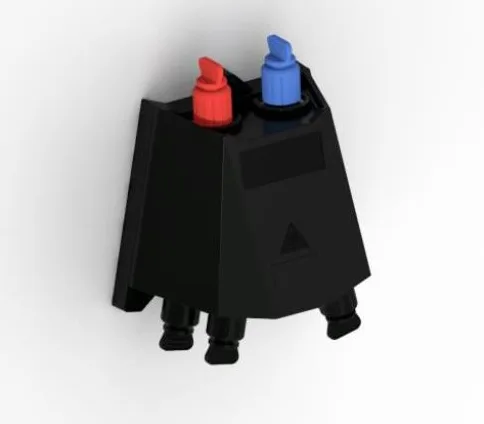

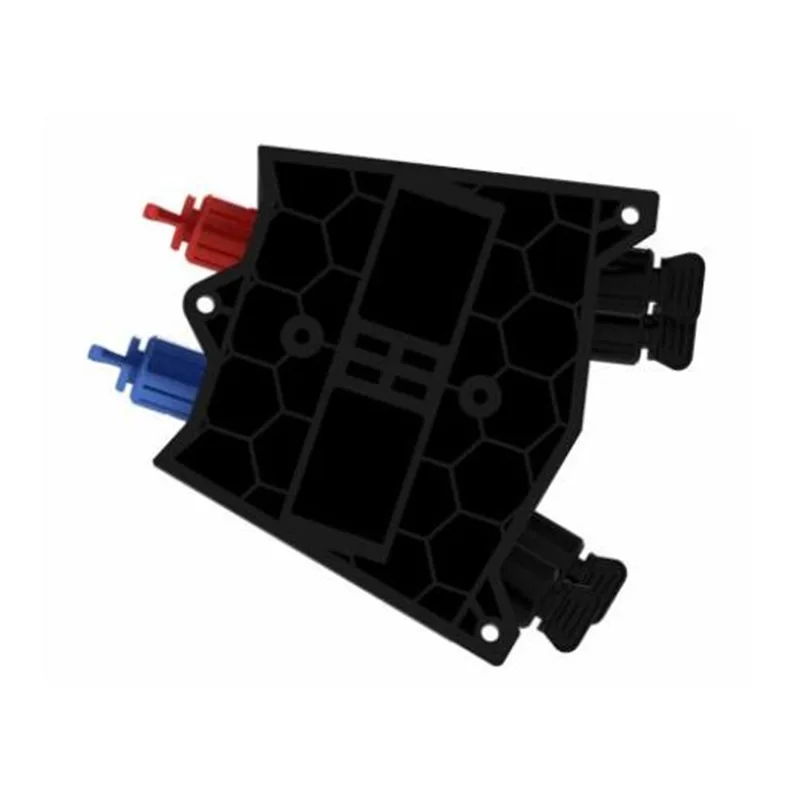

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

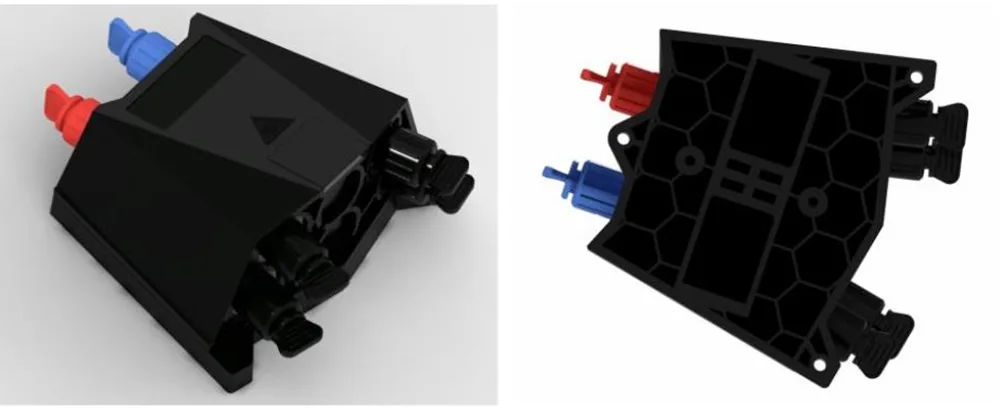

Penampilan GFS-004-002C

1.2 standar tundhuk

Produksi sing ditawakake dirancang, diprodhuksi lan diuji miturut standar kaya ing ngisor iki:

Sing-t g.652	Karakteristik serat optik mode
IEC 60794-1-1	Kabel Serat Optik-Bagean 1-1: spesies spesifikasi umum
IEC 60794-1-2	Kabel Serat Optik-Bagean 1-2: Khusus Spesifikasi Umum-Basic Kabel Ukuran Kabel Basar

1.3 Lingkungan Aplikasi

Item	Regane
Suhu operasi	-40 ºC ~ + 65 ºc
Suhu instalasi	-5 ºc ~ + 40 ºc
Suhu panyimpenan	-40ºC ~ + 65 ºc
Meksa atmosfer	70 ~ 106kpa
Kelembapan relatif	≤93% (+ 40 ℃)

2. Karakteristik

1 .. tutup ngisor lan tutup ndhuwur dipasang dening welding plato panas, sing ora bisa dicopot.

2. Bahan: PP + Gf.

3 .. Bukti kelembapan, anti banyu, bledug-bukti, anti-tuwa.

4 .. Tingkat Perlindhungan nganti IP68.

5. Interior dilengkapi 1x2 FBT Splitter + 1x4 plc splitter utawa 1x4 plc splitter.

6. Cara instalasi: dipasang kutub, dipasangake udara, dipasang tembok.

3. Spesifikasi

3.1 spesifikasi mekanik

Item	Spesifikasi	Komentar
Bahan omah	Pp + gf
Bahan aksesoris logam	Stainless steel berkualitas tinggi

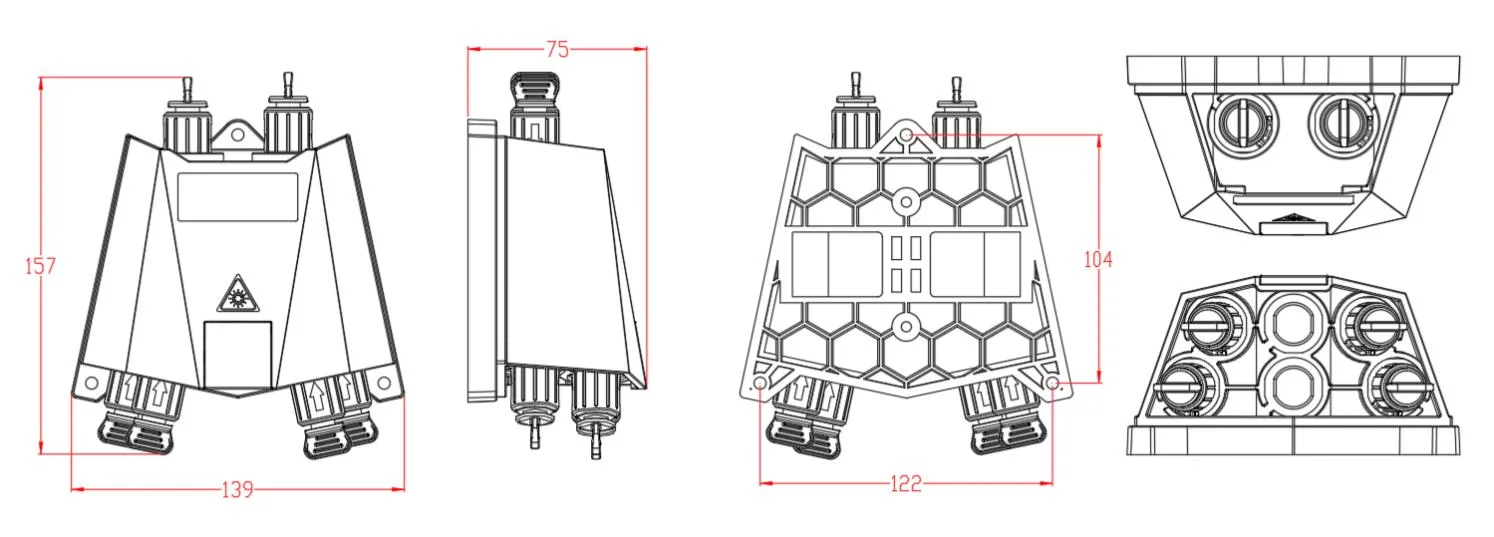

Dimensi Eksternal (MM)	157 * 139 * 75mm
Werna	Ireng
Posisi Hole Instalasi (MM)	122 * 104
Jumlah adaptor sing wis konektor	10
Splitter	1x2 FBT Splitter + 1x4 plc Splitter
Kelas IP	IP68
Flammability	Ul94-hb	Default
Tes semprotan uyah netral (nss)	48h	Default

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

4. Konfigurasi

Paramèter optik utama

Splitter	The (DB)		RL (DB)	The (DB)	Cara tes
Splitter	Splitter			Kothak distribusi	Cara tes
1 * 2 fbt (90/10) + 1 * 4 PLC splitter, Kanthi konektor scapc	1 * 2 fbt (90%)	≤1	≥55	≤1.2	IL: Cara iEC61300-3- B Rl: Cara iEc61300-3-6 1
	1 * 2 fbt (10%) + 1 * 4 plc	≤18.60	≥55	≤18.80
1 * 2 fbt (80/20) + 1 * 4 PLC splitter, Kanthi konektor scapc	1 * 2 fbt (80%)	≤1. 40	≥55	≤1.6
	1 * 2 fbt (20%) + 1 * 4 plc	≤15.5	≥55	≤15.7
1 * 2 FBT (70/30) + 1 * 4 PLC splitter, Kanthi konektor scapc	1 * 2 fbt (70%)	≤2.1	≥55	≤2.5
	1 * 2 fbt (30%) + 1 * 4 plc	≤13.4	≥55	≤13.6
1 * 2 FBT (60/40) + 1 * 4 PLC Splitter, Kanthi konektor scapc	1 * 2 fbt (60%)	≤2.8	≥55	≤3
	1 * 2 fbt (40%) + 1 * 4 plc	≤12.3	≥55	≤12.5
1 * 2 FBT (50/50) + 1 * 4 PLC Splitter, Kanthi konektor scapc	1 * 2 fbt (50%)	≤3.7	≥55	≤3.9
	1 * 2 fbt (50%) + 1 * 4 plc	≤11.2	≥55	≤11.4
1 * 4 plc splitter, Kanthi konektor scapc	1 * 4 plc	≤7.1	≥55db	≤7.3

Parameter optik sing ditampilake ing tabel ing ndhuwur minangka nilai standar, lan bisa disesuaikan miturut syarat.

5 .. gambar produk

5.1 Kabel kabel Produk:

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

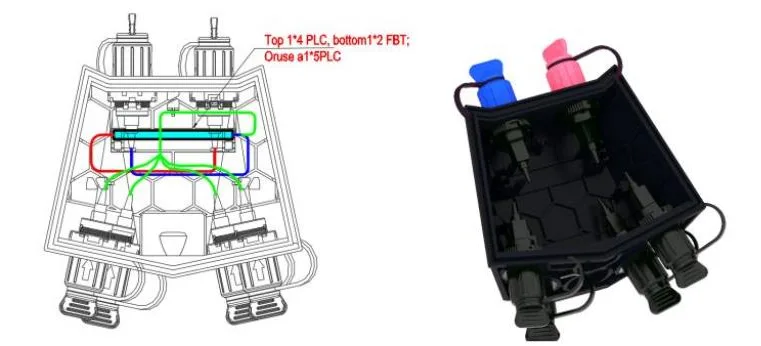

1 * 2 fbt + 1 * 4 plc splitter cara

5.2 Aksesoris

Ora.	Jeneng Part	Gambar referensi	Unit	Jumlahe	Komentar
1	PanggunaMuan	/	PCS	1	Ing
2	Laporan Tes Splitter	/	PCS	1	Ing
3	Kit dipasang tembok		Setel	1	Opsional minangka panjaluk pelanggan
4	Kit dipasang pole		Setel	1	Opsional minangka panjaluk pelanggan
5	Dipasangake aerial kit		Setel	1	Opsional minangka panjaluk pelanggan

6. Karakteritas Lingkungan

Produk iki tundhuk karo arahan perlindungan lingkungan Rah, lan isi timbal, Cadmium, Mercury, Chromium hexavalen (PBBRominated (PBBRominated Diphenminated (PBDE) ora ngluwihi watesan kasebut.

7 .. Instalasi

7.1. Instalasi tembok

Drill 3 bolongan ing tembok miturut dimensi, nyelehake plug ekspansi φ7.5 * 40, nyelehake kothak kanggo cocog karo bolongan lan gunakake ngawut-awut supaya bisa diikat.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

Instalasi dipasang ing tembok

7.2. Instalasi sing dipasang Pole

Pass cincin hoop liwat slot piring mburi lan ndandani kutub telekomunikasi.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

Instalasi Pole dipasang

7.3. Struktur overhead

Ikat sing wis diinstal ing sasis ing overhead digantung ing kawat, banjur bolted, nyegah kasus kasebut tiba.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

Struktur overhead

8. Operasi Konektor

8.1 adaptor sing wis disambungake - a (e)

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

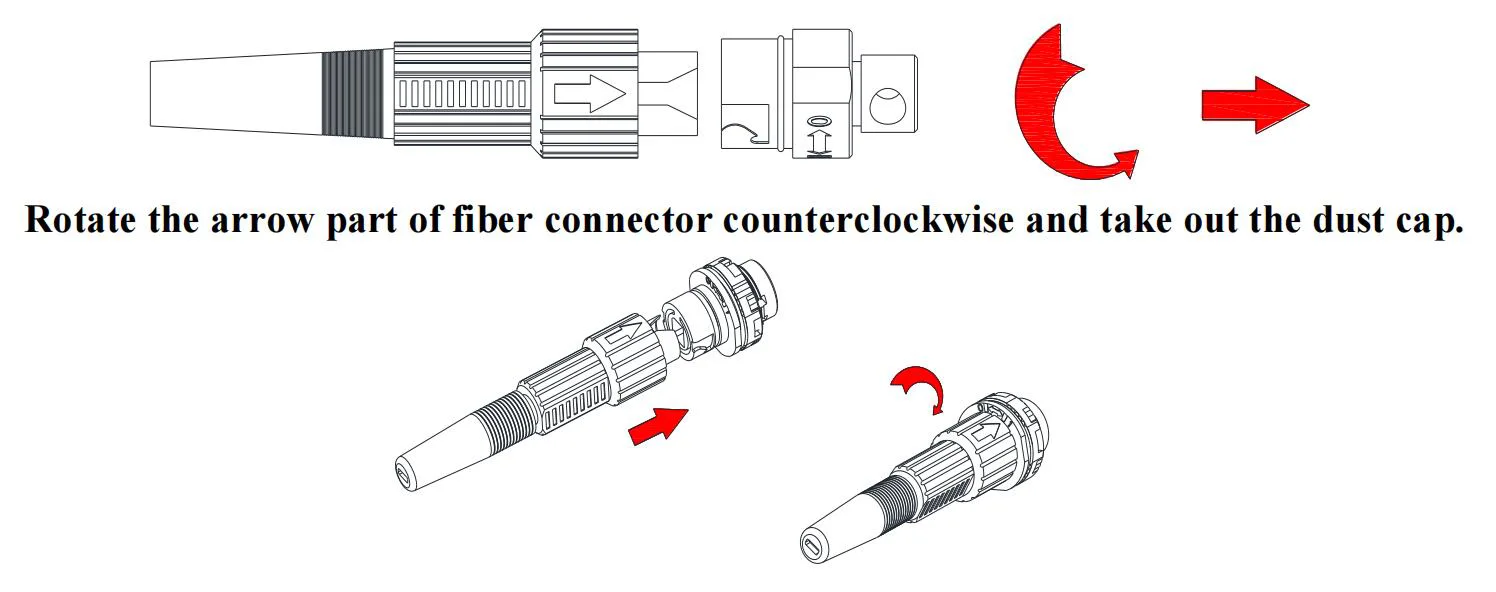

Bagéan konektor serat ing ndhuwur, lebokake konektor serat menyang soket banjur muter panah panah kanthi jam.

8.2 adaptor sing wis disambungake - B (XL)

√ Lebokake plug konektor serat serat Scer liwat bagean ngeculke, banjur pasang adaptor;

⚫ Instal xl sadurunge adaptor adaptor ing adaptor nganggo kunci plastik;

√ Pasang plug ing sworo spring ing sarung;

⚫ Clamp kabel bakal diinstal lan garis kasebut bakal cedhak karo plug;

⚫ ngawut tutup kabel clamp kulit kulit ing sarung jarik

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8,3 adaptor sing wis disambungake - c

⚫ Tolak cincin geser ing serat optik kanggo plug ing arah panah kanggo mbusak tutup bledug; Pencet tombol kanggo njupuk tutup bledug ing adaptor ing arah panah.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

⚫ Nuduhake awak plug sing preformed kanthi adaptor buckle nganti diikat. Sambungake rong bledug ing cara sing padha.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

⚫ Prefabricated plug sing wis diinstal nyurung cincin geser kanggo ngeculake buckle, banjur tarik awak utama mundur kanggo misahake.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.4 adaptor sing wis disambungake - D

⚫ Giliran pluwalan sing wis disambungake anti jam kanthi jam lan bledug sing dipasang ing arah panah.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

⚫ Sambungake plug sing disambungake d lan adaptor sing disambungake ing arah panah, lan muter plug clockwise kanggo ndandani.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.5 adaptor sing wis disambungake - e (a)

⚫ Giliran plug sing wis disambungake anti jam kanthi jam lan bledug sing disambungake ing arah panah

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

⚫ Sambungake plug sing nyambung lan adaptor sing disambungake lan ing arah panah, lan muter plug clockwise kanggo ndandani.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.6 Sambungake Adapter -F (SC)

√ Lebokake plug konektor serat serat Scer liwat bagean ngeculke, banjur pasang adaptor;

⚫ Instal xl sadurunge adaptor adaptor ing adaptor nganggo kunci plastik;

√ Pasang plug ing sworo spring ing sarung;

⚫ Clamp kabel bakal diinstal lan garis kasebut bakal cedhak karo plug;

⚫ Nyawiji tutup kabel clamp kulit kulit ing sarung jarik.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

8.7 adaptor sing wis disambungake - g

Pre-connectorized Fiber Optic Cable Distribution Box GFS-004-002C

9. Paket

Item	Bahan	Ukuran (mm)	Jumlahe	Bobot Kasar (kg)
Kemasan produk independen	Karton	170x150x85	1	0.6
Karton kemasan njaba	Karton	360x320X465	20	13
Cathetan: tanpa tray panyimpenan kabel nyelehake
