1. Umum

1.1 Katrangan

Box Distribusi Optik Pre-Connected minangka peralatan simpul FTT sing paling maju, nyedhiyani sambungan cepet lan dipercaya, perlindungan lan manajemen sing apik kanggo jaringan FTTX.

Jenis Produksi	Klasifikasi
GFS-8BY & -1	Kothak Distribusi Kabel Serat Optik sing Konektor

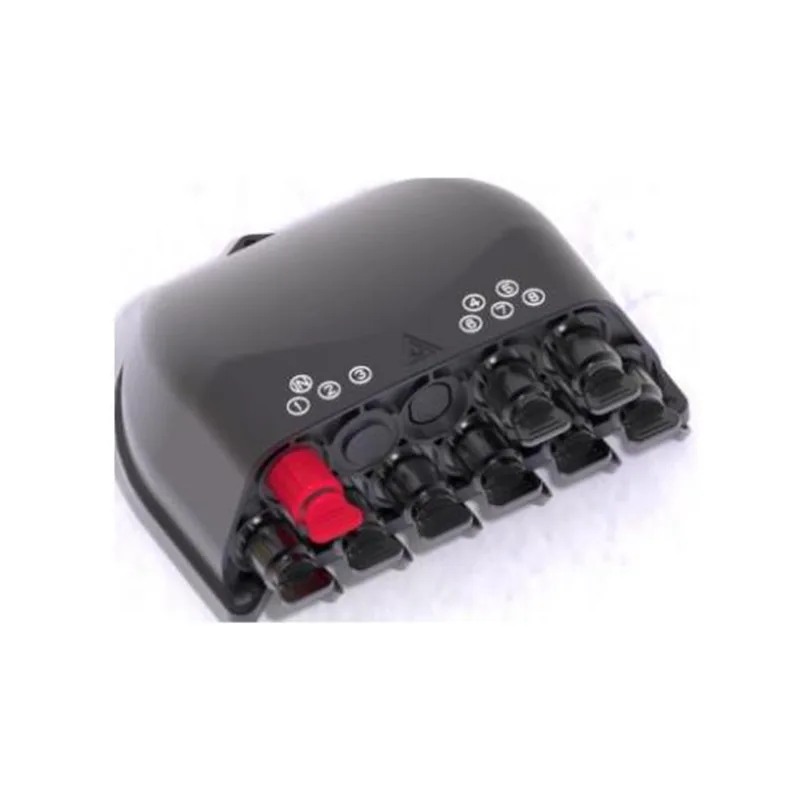

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

1.2 standar tundhuk

Produksi sing ditawakake dirancang, diprodhuksi lan diuji miturut standar kaya ing ngisor iki:

Sing-t g.652	Karakteristik serat optik mode
IEC 60794-1-1	Kabel Serat Optik-Bagean 1-1: spesies spesifikasi umum
IEC 60794-1-2	Kabel Serat Optik-Bagean 1-2: Khusus Spesifikasi Umum-Basic Kabel Ukuran Kabel Basar

1.3 Lingkungan Aplikasi

Item	Regane
Suhu operasi	-40 ºC ~ + 65 ºc
Suhu instalasi	-5 ºc ~ + 40 ºc
Suhu panyimpenan	-40ºC ~ + 65 ºc
Meksa atmosfer	70 ~ 106kpa
Kelembapan relatif	≤93% (+ 40 ℃)

2. Karakteristik

1 .. tutup ngisor lan tutup ndhuwur dipasang dening welding plato panas, sing ora bisa dicopot.

2. Bahan: PP.

3 .. Bukti kelembapan, anti banyu, bledug-bukti, anti-tuwa.

4 .. Tingkat Perlindhungan nganti IP68.

5. Interior dilengkapi 1x2 FBT Splitter + 1x8 PLC splitter utawa 1x8 PLC splitter.

6. Cara instalasi: dipasang kutub, dipasangake udara, dipasang tembok.

7 .. Bisa dilengkapi tray panyimpenan kabel nyelehake tray kanggo nyukupi panyimpenan kabel bunder 5mm 5mm.

3. Spesifikasi

3.1 spesifikasi mekanik

Item	Spesifikasi	Komentar
Bahan omah	Plastik PP sing diowahi
Bahan aksesoris logam	Stainless steel berkualitas tinggi

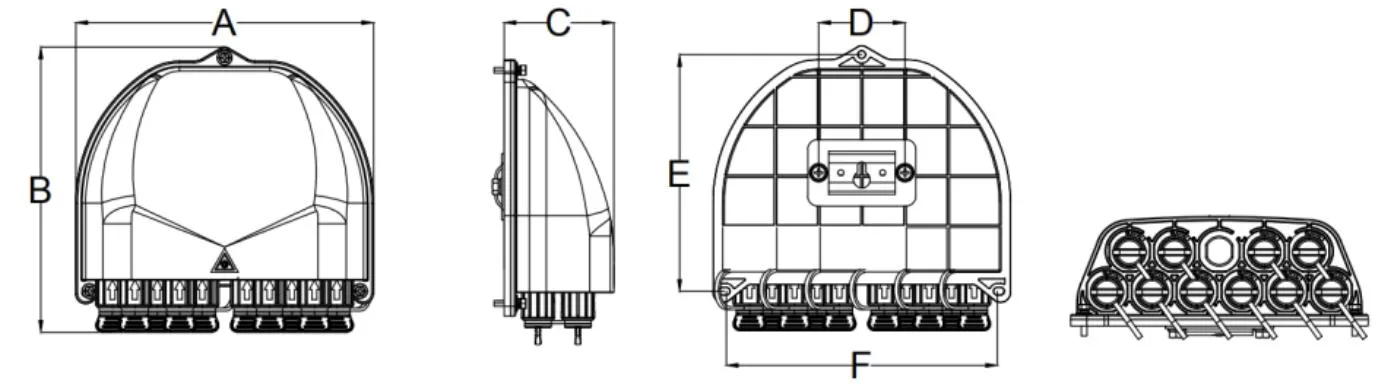

Dimensi Eksternal (MM)	171 * 179 * 66mm	A * b * c
Werna	Ireng
Posisi Hole Instalasi (MM)	52 * 142 * 165	D * e * f
Jumlah adaptor sing wis konektor	10	GFS-8BY (1 abang, 1 biru, 8 ireng)
Jumlah adaptor sing wis konektor	9	GFS-8BY-1 (1 abang, 8 ireng)
Splitter	1x2 FBT Splitter + 1x8 PLC Splitter	GFS-8BY, rasio standar 1x2 FBT splitter yaiku 70% / 30%
Splitter	1x8 PLC Splitter	GFS-8BY-1
Kelas IP	IP68
Flammability	Ul94-hb	Bisa disesuaikan miturut kabutuhan.
Tes semprotan uyah netral (nss)	48h	Bisa disesuaikan miturut kabutuhan.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

4. Konfigurasi

Paramèter optik utama

Model	Splitter	The (DB)		RL (DB)	The (DB)	Cara tes
Model	Splitter	Splitter			Kothak distribusi	Cara tes
GFS-8BY	1 * 2 fbt (90/10) + 1 * 8 PLC Splitter, Kanthi Konektor Scapc	1 * 2 fbt (90%)	≤8.3	≥55db	≤1.03	IL: Cara iEC61300-3- B Rl: Cara iEc61300-3-6 1
		1 * 2 fbt (10%) + 1 * 8 plc	≤21.7	≥55db	≤21.9
	1 * 2 fbt (80/20) + 1 * 8 PLC Splitter, Kanthi Konektor Scapc	1 * 2 fbt (80%)	≤1.4	≥55db	≤1.6
		1 * 2 fbt (20%) + 1 * 8 plc	≤18.3	≥55db	≤18.5
	1 * 2 fbt (70/30) + 1 * 8 PLC Splitter, Kanthi Konektor Scapc	1 * 2 fbt (70%)	≤2.1	≥55db	≤2.3
		1 * 2 fbt (30%) + 1 * 8 plc	≤16.5	≥55db	≤16.7
	1 * 2 fbt (60/40) + 1 * 8 PLC Splitter, Kanthi Konektor Scapc	1 * 2 fbt (60%)	≤2.8	≥55db	≤3.0
		1 * 2 fbt (40%) + 1 * 8 plc	≤15.2	≥55db	≤15.4
	1 * 2 fbt (50/50) + 1 * 8 PLC Splitter, Kanthi Konektor Scapc	1 * 2 fbt (50%)	≤3.8	≥55db	≤4.0
		1 * 2 fbt (50%) + 1 * 8 plc	≤14.3	≥55db	≤14.5
GFS-8BY-1	1x8 PLC Splitter, Kanthi Konektor Scapc	1 * 8 plc	≤10.5	≥55db	≤10.7

Parameter optik sing ditampilake ing tabel ing ndhuwur minangka nilai standar, lan bisa disesuaikan miturut syarat.

5 .. gambar produk

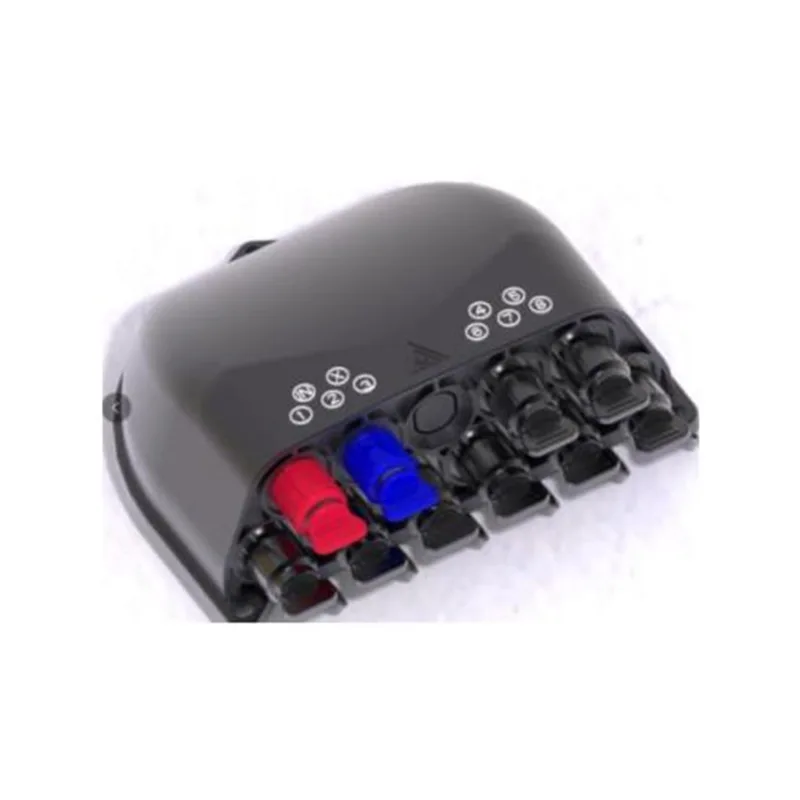

5.1 Kabel kabel Produk:

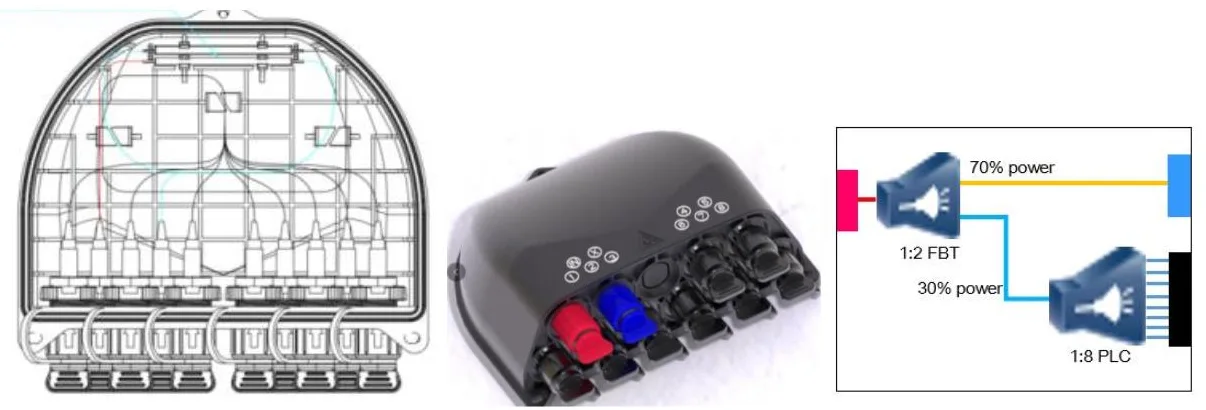

PLC ing ndhuwur, FBT ing ngisor

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

GFS-8BY (1 * 2 FBT + 1 * 8 PLC Splitter Cara Kabel)

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

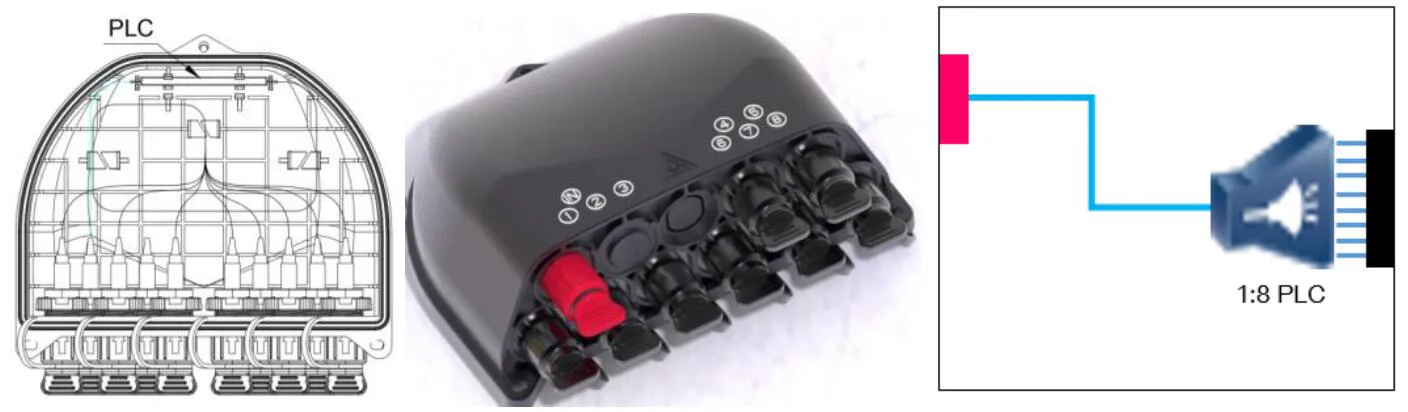

GFS-8BY-1 (1 * 8 PLC Splitter Cara Kabel)

5.2 Konfigurasi

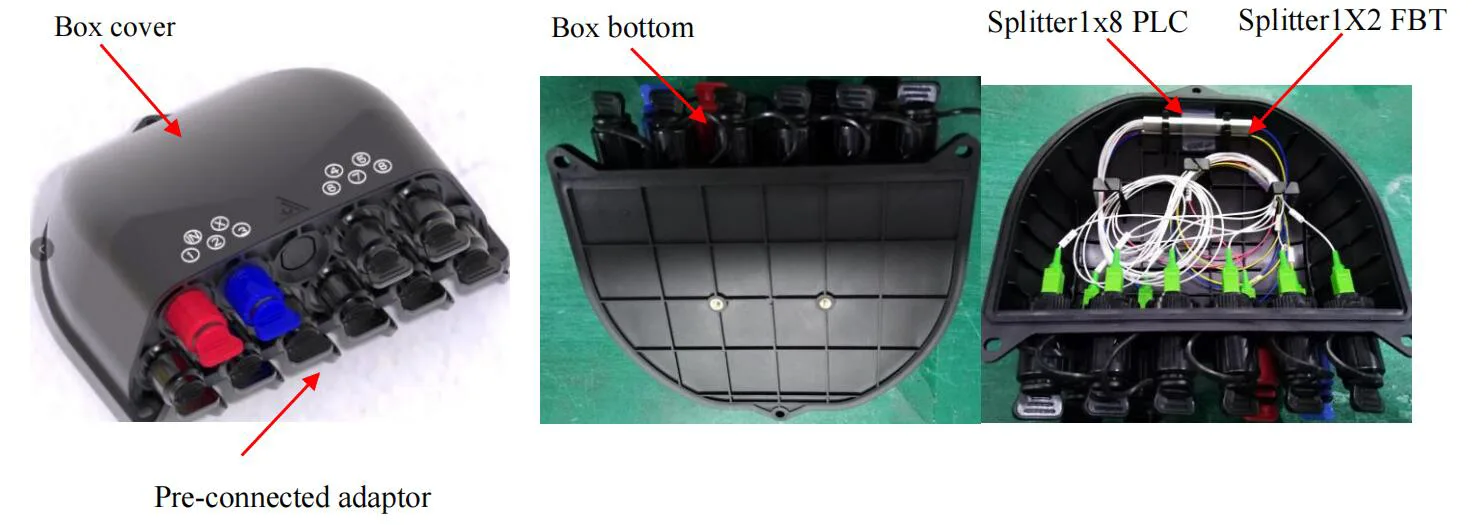

5.2.1 bagean utama

Ora.	Jeneng Part	Unit	Jumlahe	Komentar
1	Kothak ngisor	PCS	1
2	Tutup kothak	PCS	1
3	Adaptor sing wis disambungake	PCS	10	GFS-8BY
4	Adaptor sing wis disambungake	PCS	9	GFS-8BY-1
5	Splitter1X2 fbt	PCS	1	Mung diinstal ing GFS-8BY
6	Splitter1X8 PLC	PCS	1

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

5.2.2 Aksesoris

Ora.	Jeneng Part	Gambar referensi	Unit	Jumlahe	Komentar
1	PanggunaMuan	/	PCS	1	Ing
2	Laporan Tes Splitter	/	PCS	1	Ing

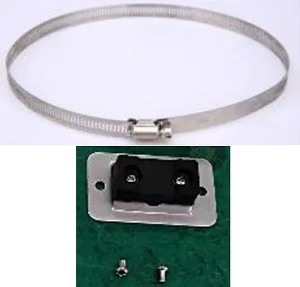

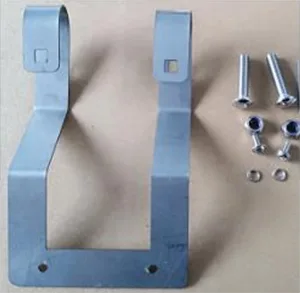

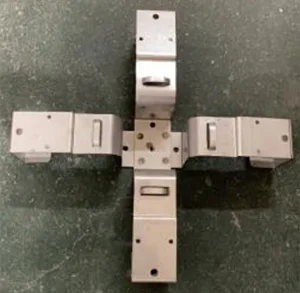

3	Kit dipasang tembok		Setel	1	Opsional minangka pelanggan Panjaluk
4	Kit dipasang pole		Setel	1	Opsional minangka pelanggan Panjaluk
4	Kit dipasang pole		Setel	1	Opsional minangka pelanggan Panjaluk
5	Kit udara sing dipasang		Setel	1	Opsional minangka pelanggan Panjaluk

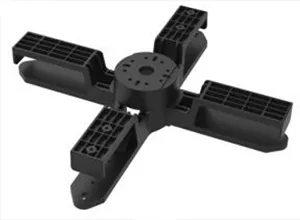

6	Kabel nyelehake tray panyimpenan		Setel	1	Opsional minangka pelanggan Panjaluk
7	Kabel nyelehake tray panyimpenan		Setel	1	Opsional minangka pelanggan Panjaluk

6. Karakteritas Lingkungan

Produk iki tundhuk karo arahan perlindungan lingkungan Rah, lan isi timbal, Cadmium, Mercury, kromium hexavalen (pbpa) (PBBRominated (PBBRominated Diphenminated (PBDE) ora ngluwihi watesan kasebut.

7 .. Instalasi

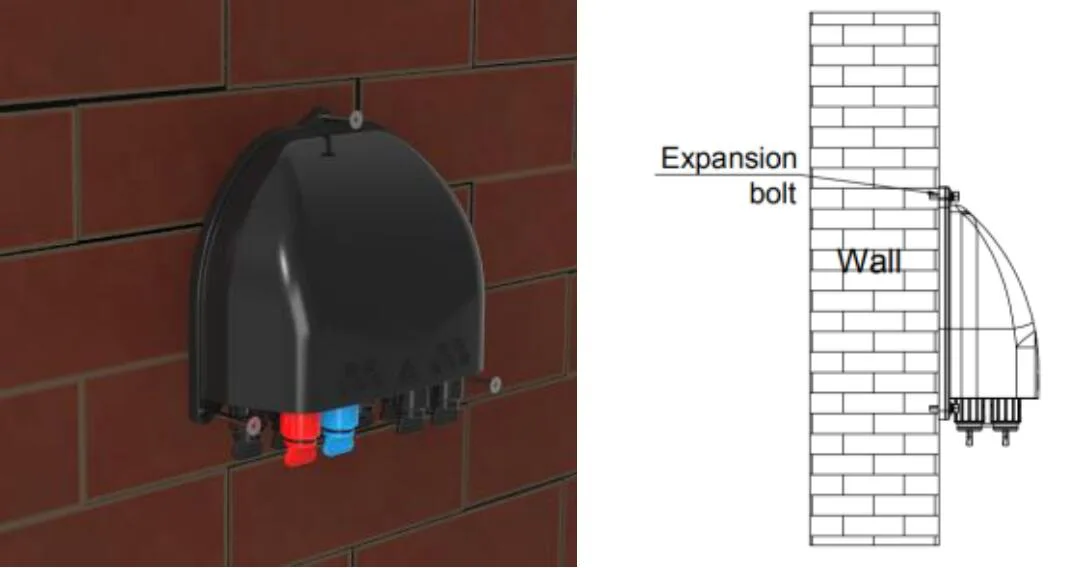

7.1. Instalasi tembok

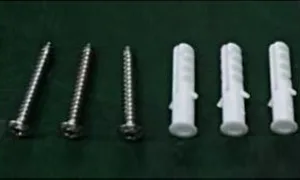

Drill 3 bolongan ing tembok miturut dimensi, nyelehake plug ekspansi φ7.5 * 40, nyelehake kothak kanggo cocog karo bolongan lan gunakake ngawut-awut supaya bisa diikat.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

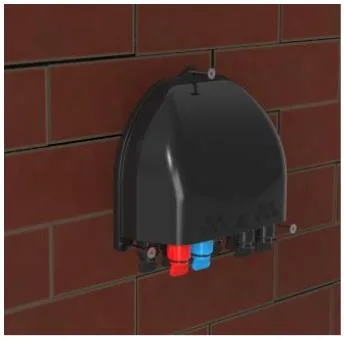

Instalasi dipasang ing tembok

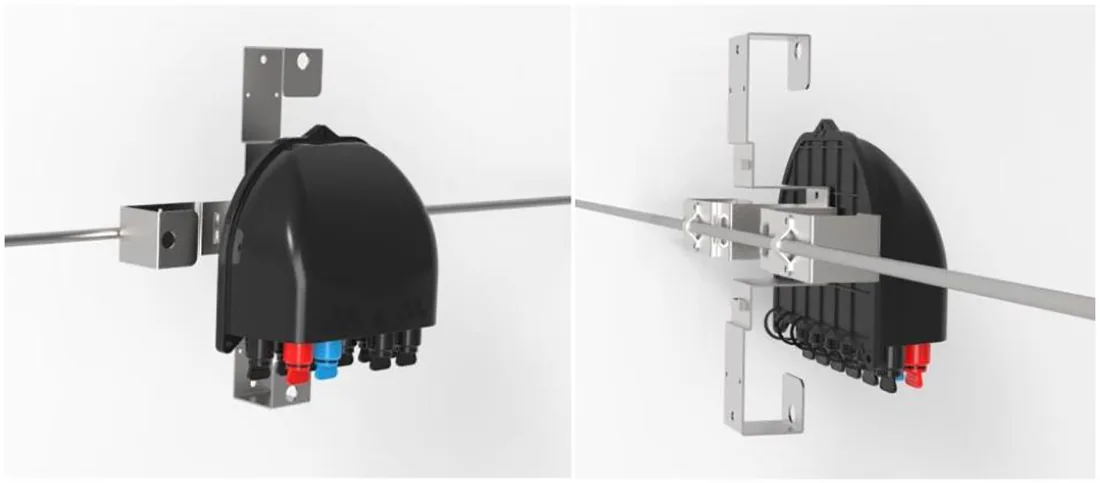

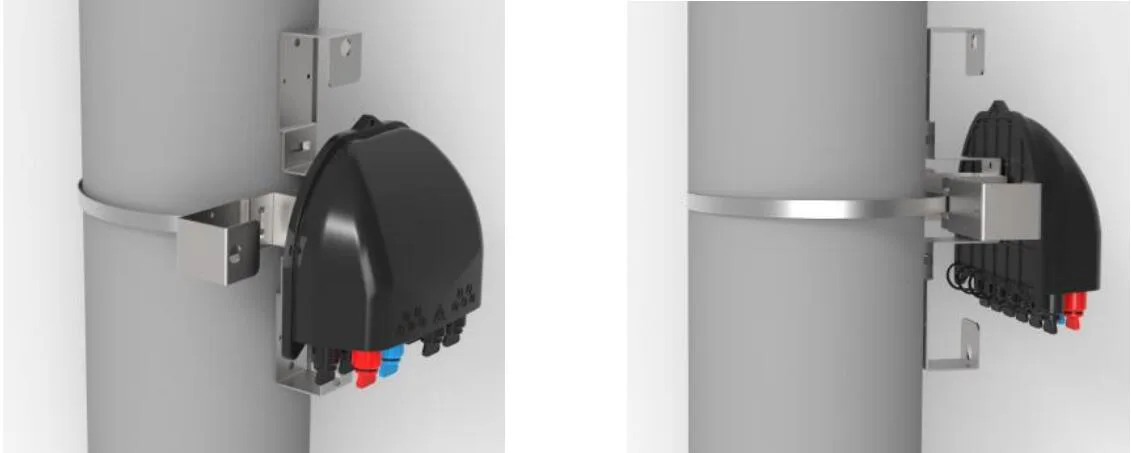

7.2. Instalasi sing dipasang Pole

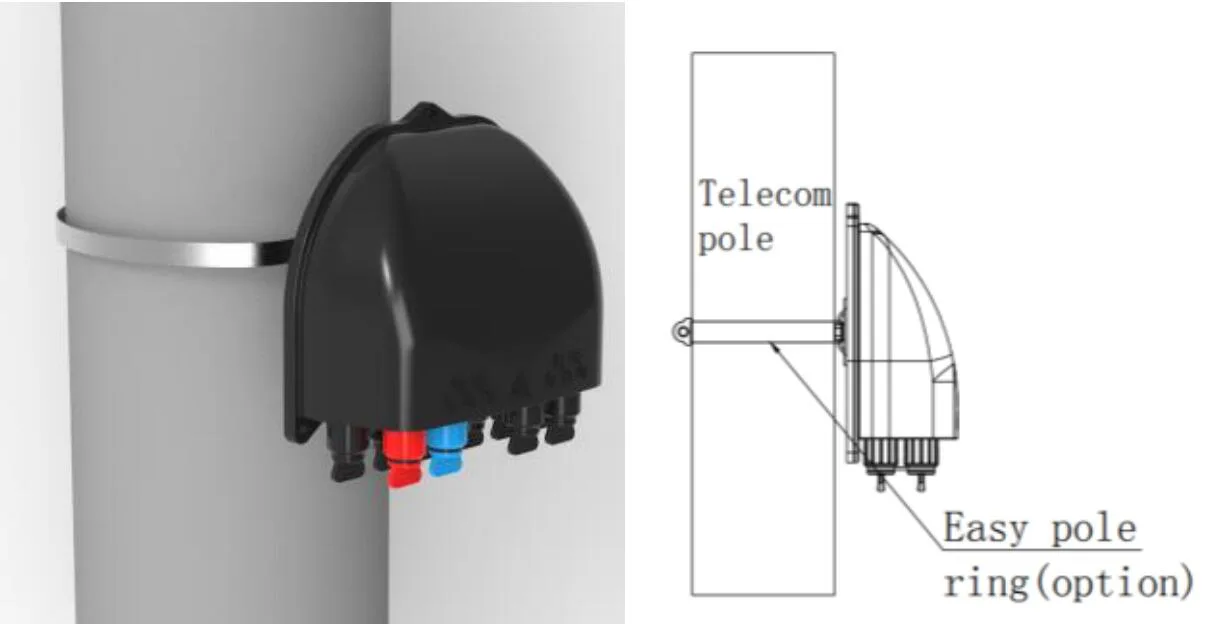

Pass dering hoop liwat slot piring mburi lan ndandani kutub telekomunikasi

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Instalasi Pole dipasang

7.3. Instalasi dipasang tembok (kanthi tray panyimpenan kabel drop)

Drill 4 Bolongan ing Tembok miturut ukuran Holanding Watu Panggonan DropS Drops, selehake plug ekspansi φ 8 * 40, pasang kothak kasebut kanggo cocog karo bolongan kasebut, lan cepet karo ngawut-awut.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Instalasi dipasang tembok (kanthi tray panyimpenan kabel drop

7.4. Instalasi sing dipasang Pole (kanthi tray panyimpenan kabel drop)

Pass sabuk baja tahan karat liwat slot saka tray panyimpenan kabel lebar tray lan ndandani ing cagak kanthi buckle.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Instalasi sing dipasang Pole (kanthi tray panyimpenan kabel drop)

7.5. Instalasi dipasangake udara (kanthi tray panyimpenan kabel drop)

Gunakake piring logam cilik kanggo ndandani kothak distribusi menyang utusan.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

Instalasi dipasangake udara (kanthi tray panyimpenan kabel drop)

8. Operasi Konektor

8.1 adaptor sing wis disambungake - a (e)

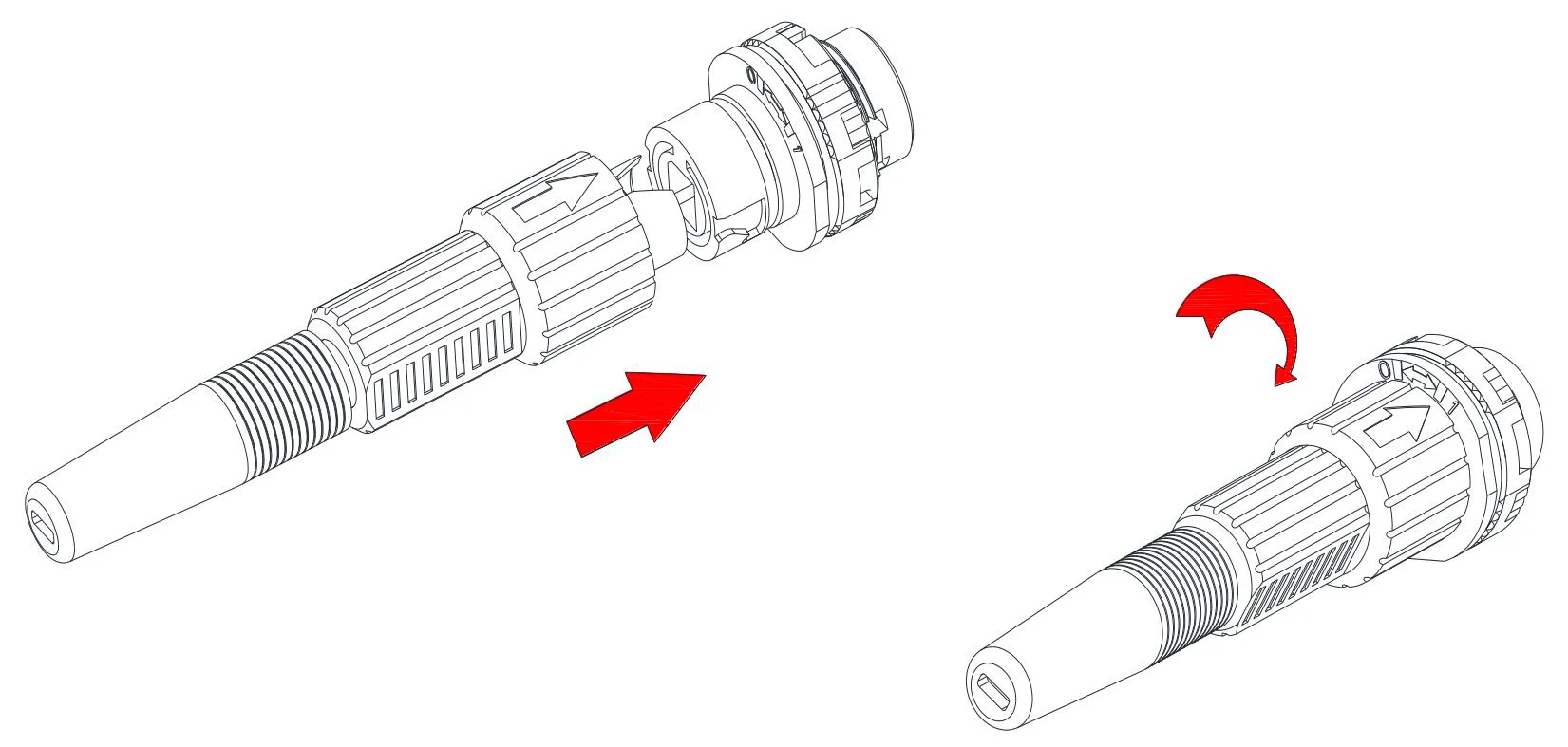

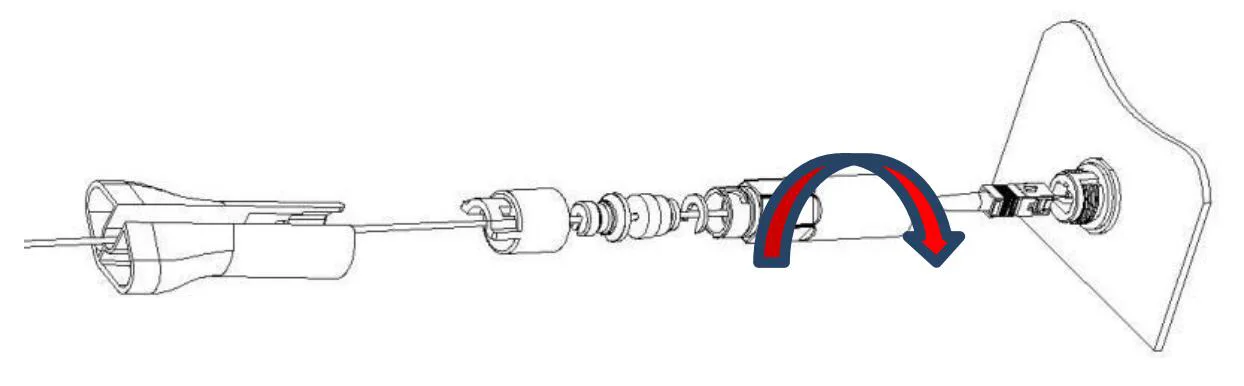

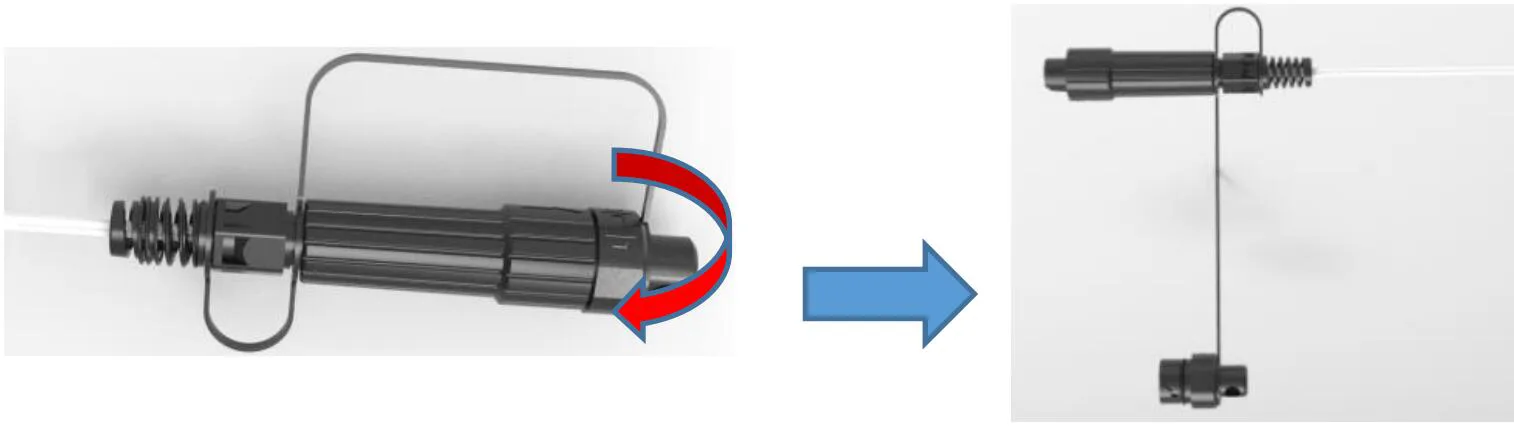

⚫ Puterake bagean panah konektor serat counclockwise lan njupuk tutup bledug.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Sisih panah Konektor Serat ing ndhuwur, lebokake konektor serat menyang soket banjur muter panah bagean jam kanthi jam.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.2 adaptor sing wis disambungake - B (XL)

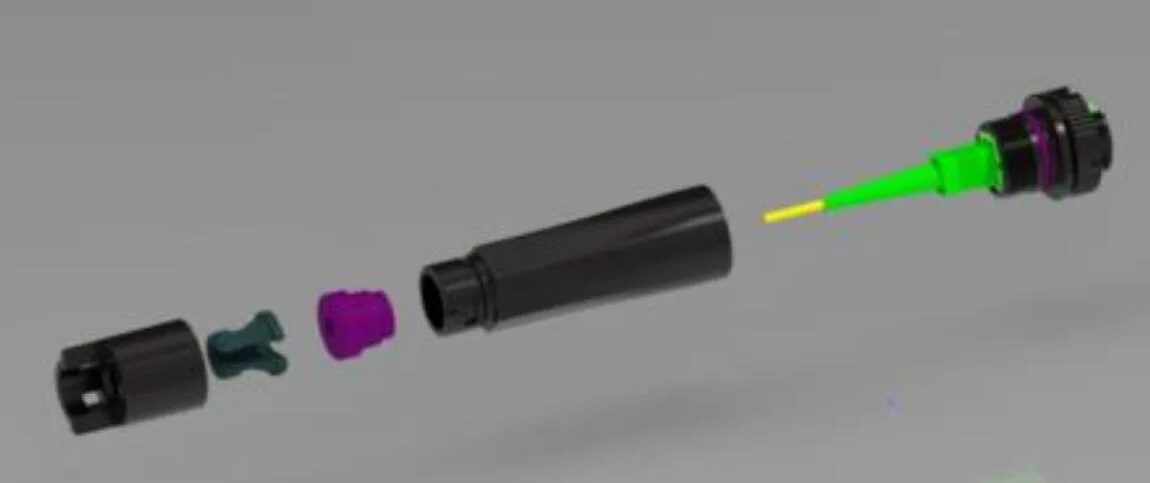

√ Lebokake plug konektor serat serat Scer liwat bagean ngeculke, banjur pasang adaptor;

⚫ Instal xl sadurunge adaptor adaptor ing adaptor nganggo kunci plastik;

√ Pasang plug ing sworo spring ing sarung;

⚫ Clamp kabel bakal diinstal lan garis kasebut bakal cedhak karo plug;

⚫ ngawut tutup kabel clamp kulit kulit ing sarung jarik

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

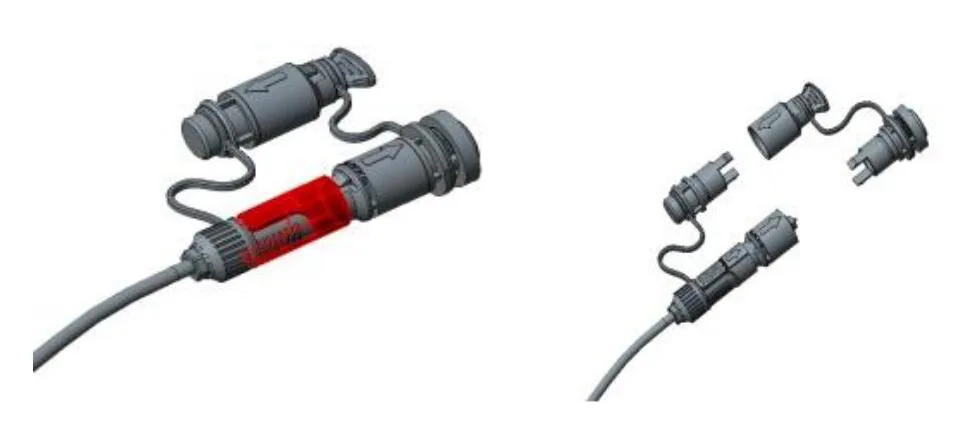

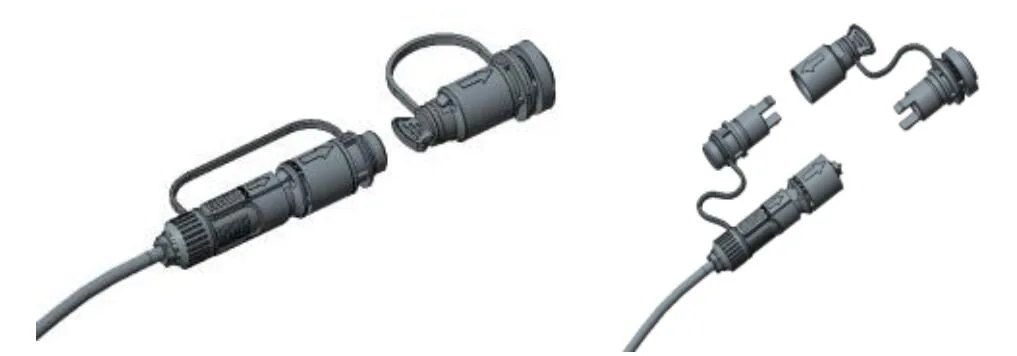

8,3 adaptor sing wis disambungake - c

⚫ Tolak cincin geser ing serat optik kanggo plug ing arah panah kanggo mbusak tutup bledug; Pencet tombol kanggo njupuk tutup bledug ing adaptor ing arah panah.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Nuduhake awak plug sing preformed kanthi adaptor buckle nganti diikat. Sambungake rong bledug ing cara sing padha.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

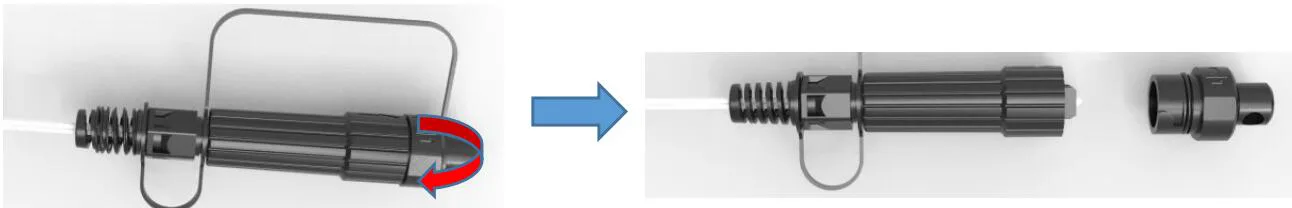

⚫ Prefabricated plug sing wis diinstal nyurung cincin geser kanggo ngeculake buckle, banjur tarik awak utama mundur kanggo misahake.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.4 adaptor sing wis disambungake - D

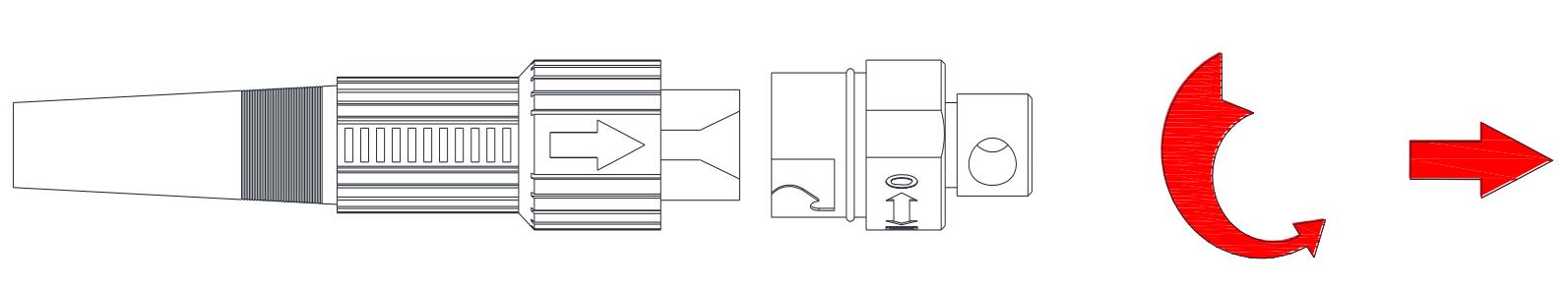

⚫ Giliran pluwalan sing wis disambungake anti jam kanthi jam lan bledug sing dipasang ing arah panah.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

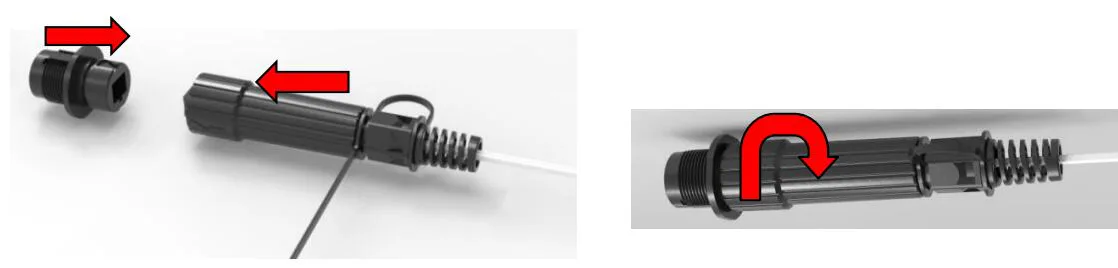

⚫ Sambungake plug sing disambungake d lan adaptor sing disambungake ing arah panah, lan muter plug clockwise kanggo ndandani.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.5 adaptor sing wis disambungake - e (a)

⚫ Giliran plug sing wis disambungake anti jam kanthi jam lan bledug sing disambungake ing arah panah

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

⚫ Sambungake plug sing nyambung lan adaptor sing disambungake lan ing arah panah, lan muter plug clockwise kanggo ndandani.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

8.6 Sambungake adaptor -F -f

√ Lebokake plug konektor serat serat Scer liwat bagean ngeculke, banjur pasang adaptor;

⚫ Instal xl sadurunge adaptor adaptor ing adaptor nganggo kunci plastik;

√ Pasang plug ing sworo spring ing sarung;

⚫ Clamp kabel bakal diinstal lan garis kasebut bakal cedhak karo plug;

⚫ Nyawiji tutup kabel clamp kulit kulit ing sarung jarik.

Pre-connectorized Fiber Optic Cable Distribution Box GFS-8BY&-1

9. Paket

Item	Bahan	Ukuran (mm)	Jumlahe	Bobot Kasar (kg)
Kemasan produk independen	Karton	195x195X95	1	0.7
Karton kemasan njaba	Karton	810x410x510	40	28.1
Cathetan: tanpa tray panyimpenan kabel nyelehake
