Desain struktural non-logam kanthi efektif nyegah gangguan frekuensi radio lan Gelap Gelombang Elektromagnetik
Struktur kabel sing ketat kanthi efektif nyegah simpul saka nyusut
Senyawa Isi Tube Isi njamin kinerja resistensi kelembapan sing apik
Keluwesan apik
Serat sing dhuwure kukul, diameter cilik lan bobot entheng
Dicocogake menyang jaringan tettero, jaringan akses an

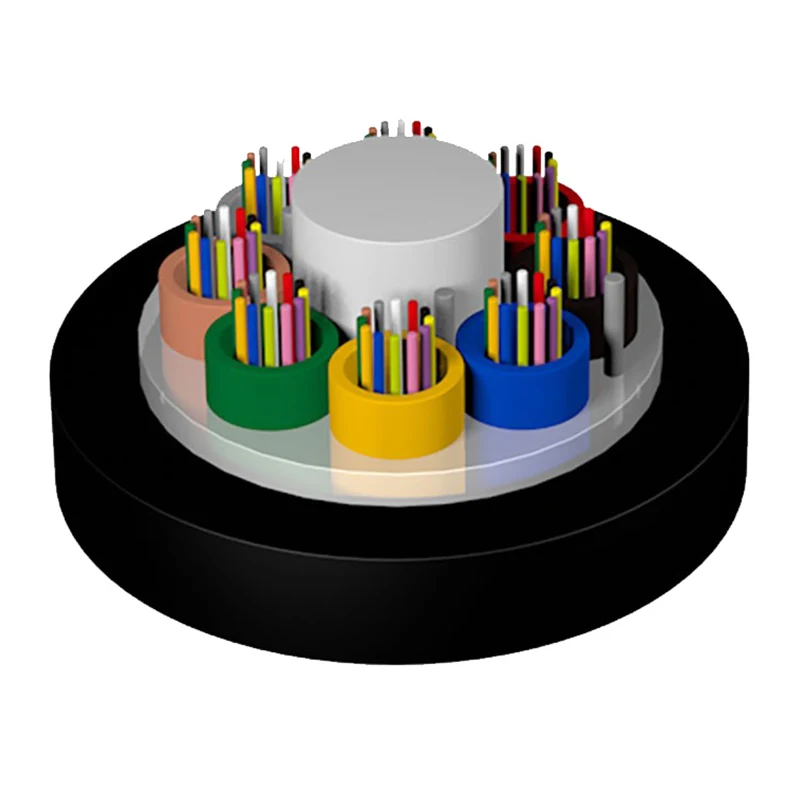

1. Serat
2. Senyawa Isi Tube
3 .. tabung longgar
4. Anggota Kekuwatan Frp
5 .. ripcord
6. Benang Water Water
7. PE SHEATH
|
Jinis kabel |
Count regiber |
Tabung |
Pengisi |
Diameter kabel (mm) |
Bobot kabel (Ref) (kg / km) |
Kekuwatan tensile Jangka panjang / jangka pendek (N) |
Rintangan crush Jangka panjang / jangka pendek (N / 100mm) |
Bending radius Statik / Dinamis (mm) |
|
GcyFy-24 ~ 72xn |
24 ~ 72 |
2 ~ 6 |
4 ~ 0 |
5.6 |
21 |
150/500 |
150/450 |
10d / 20d |
|
Gcyfy-96XN |
96 |
8 |
0 |
6.4 |
31 |
250/800 |
150/450 |
10d / 20d |
|
Gyfy-144xn |
144 |
12 |
0 |
8.3 |
49 |
250/800 |
150/450 |
10d / 20d |
Simpenan / suhu operasi: -30 ℃ - + 70 ℃
|
Jinis serat |
Attenuation (+ 20 ℃) |
Bandwidth |
Aperture angka |
Gelombang gelombang gelombang gelombang λcc |
||||
|
@ 850nm |
@ 1300nm |
@ 1310nm |
@ 1550nm |
@ 850nm |
@ 1300nm |
|||
|
G.652 |
--- |
--- |
≤0.36db / km |
≤0.22db / Km |
--- |
--- |
--- |
≤1260nm |
|
G.657 |
--- |
--- |
≤0.36db / km |
≤0.22db / Km |
--- |
--- |
--- |
≤1260nm |
|
50 / 125μμm |
≤3.3db / km |
≤1.2db / km |
--- |
--- |
≥500mhz · km |
≥500mhz · km |
--- |
--- |
|
62.5 / 125μm |
≤3.5db / km |
≤1.2db / km |
--- |
--- |
≥200MHZ · km |
≥500mhz · km |
0.275 ± 0,015 wis |
--- |
