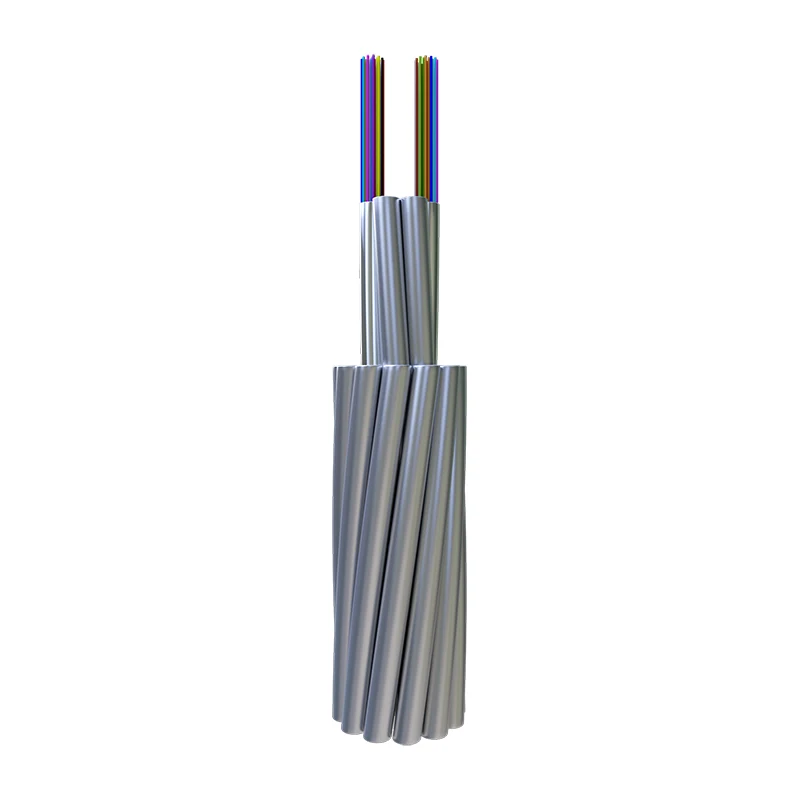

Kawat optik serat-serletis huruf ndhuwur biasane digunakake kanggo 110kv, 250kv, 750kv, 750kv, 750kv, 750kv, 750kv, 750kv, 750kv, 750kv, 750kv lan komunikasi sistem transmisi tinggi overhead.
● Kontrol proses sing tepat kanggo njamin kinerja mekanik lan suhu sing apik
● Diameteripun luwih gedhe lan serat optik
● Struktur stabil lan linuwih sing dhuwur
● kekuwatan tensile dhuwur lan kapasitas saiki sing gedhe
|
|
Attenuation |
Bandwidth |
Polarisasi Panyebaran mode |
|||||
|
@ 850nm |
@ 1300nm |
@ 1310nm |
@ 1550nm |
@ 850nm |
@ 1300nm |
Individu Serat |
Desain Nilai link (m = 20, q = 0,01%) |
|
|
G652d |
— |
— |
≤0.35db / km |
≤0.21db / km |
— |
— |
≤0.20ps / KM |
≤0.1ps / KM |
|
G655 |
— |
— |
— |
≤0.22db / Km |
— |
— |
≤0.20ps / KM |
≤0.1ps / KM |
|
50 / 125μμm |
≤3.0Db / km |
≤1.0DB / KM |
— |
— |
≥600mhz.km |
≥1200mhz.km |
— |
— |
|
62.5 / 125μm |
≤3.5db / km |
≤1.0DB / KM |
— |
— |
≥200mhz.km |
≥600mhz.km |
— |
— |
|
|
KASION KASAKI |
Bahan |
Regane |
|
Konstruksi |
Serat optik |
G652D / g655 lsp. |
2 - 144 |
|
Tabung perlindungan |
Tabung baja stainless |
1,5 - 6mm |
|
|
Garis Stranded |
Minangka kabel / aa kawat / al rod |
1,5 - 6mm |
|
|
Max. Diameteripun |
30mm |
||
|
Max. Bagean bagean |
500mm2 |
||
|
Karakteristik |
Miturut standar minangka DL / T 832, IEc60794-timent-tus, iEee1138 |
||
|
Max. Kekuwatan Tensile (RTS) (KG) |
700 |
||
|
Max. Kekuwatan tresna (n / 100mm) |
3000 |
||
|
Max. Kapasitas Saiki (40 ℃ nganti 200 ℃) (Ka2S) |
2000 |
||
|
Min. Bendungan radius (dinamis) |
20d |
||
|
Min. Bendungan radius (statis) |
15d |
||
|
Lingkungan Kinerja |
Instalasi (℃) |
-10 ke +50 |
|
|
Pengangkutan lan Operasi (℃) |
-40 nganti +65 |
||
Cathetan: D minangka diameter kabel.
|
Ora. |
Data teknis |
||||||||
|
Jinis Produk |
Jinis struktur |
Max. Serat |
Bagean minangka kawat |
Diameteripun (Mm) |
Bobot kabel |
Tingkat kekuatan tensile (Kn) |
20 ℃ DC Rintangan (Ω / km) |
Kapasitas Saiki Short (40-200 ℃ ka2.S) |
|
|
1 |
Opgw-48b1.3-90- [112; 45] |
1 / 2.6 / 20AS + 4 / 2.5 / 20as + 11/ 2,8 / 20as, Unit Optik 2 / 2.5 |
48 |
≈90 |
13.2 |
≤641 |
≥112 |
≤0.98 |
≥45 |
|
2 |
Opgw-48b1.3-90- [57; 67] |
1 / 2.6 / 40as + 4 / 2.5 / 40as + 11/ 2.8 / 40as, Unit Optik 2 / 2.5 |
48 |
≈90 |
13.2 |
≤457 |
≥57 |
≤0.52 |
≥67 |
|
3 |
Opgw-24b1.3-100- [118; 50] |
1 / 2.6 / 20as + 5 / 2.5 / 20as + 11/18 / 20as, Unit Optik 1/95 |
24 |
≈100 |
13.2 |
≤674 |
≥118 |
≤0.93 |
≥50 |
|
4 |
Opgw-24b1.3-100- [60; 74] |
1/16 / 40as + 5 / 2.5 / 40as + 11/ 2.8 / 40as, Unit Optik 1 / 2.5 |
24 |
≈100 |
13.2 |
≤479 |
≥60 |
≤0.49 |
≥74 |
|
5 |
Opgw-24b1.3-110- [133; 63] |
1 / 2.6 / 20as + 5 / 2.5 / 20as + 10 / 3.2 / 20as, Unit Optik 1 / 2.5 |
24 |
≈110 |
14 |
≤760 |
≥133 |
≤0.83 |
≥63 |
|
6 |
Opgw-24b1.3-110- [140; 68] |
1/18 / 20as + 5 / 2.7 / 20as + 11 / 3.05 / 20as, Unit Optik 1 / 2.6 |
24 |
≈110 |
14.3 |
≤791 |
≥140 |
≤0.80 |
≥68 |
|
7 |
Opgw-24b1.3-110- [67; 95] |
1 / 2.9 / 20as + 5 / 2.8 / 20as + 12 / 2.8 / AA, Unit Optik 1/17 |
24 |
≈37 ≈74 (AA) |
14.1 |
≤473 |
≥67 |
≤0.40 |
≥95 |
|
8 |
Opgw-36b1.3-120- [145; 73] |
1 / 3.0 / 20as + 5 / 2.9 / 20as + 12 / 2.9 / 20as, Unit Optik 1/198 |
36 |
≈120 |
14.6 |
≤820 |
≥145 |
≤0.77 |
≥73 |
|
9 |
Opgw-36b1.3-120- [95; 98] |
1 / 3.0 / 30as + 5 / 2.9 / 30as + 12 / 2.9 / 30AS, Unit Optik 1 / 2.8 |
36 |
≈120 |
14.6 |
≤700 |
≥95 |
≤0.55 |
≥98 |
|
10 |
Opgw-36b1.3-120- [74; 110] |
1 / 3.0 / 40as + 5 / 2.9 / 40as + 12 / 2.9 / 40as, Unit Optik 1/198 |
36 |
≈120 |
14.6 |
≤582 |
≥74 |
≤0.42 |
≥110 |
|
11 |
Opgw-72b1.3-120- [147; 76] |
1 / 3.2 / 20as + 4 / 3.0 / 20as + 12 / 3.0 / 20as, Unit Optik 2 / 2.9 |
72 |
≈120 |
15.2 |
≤832 |
≥147 |
≤0.76 |
≥76 |
|
12 |
Opgw-72B1.3-120-2 [96; 101] |
1 / 3.2 / 30AS + 4 / 3.0 / 30as + 12 / 3.0 / 30as, Unit Optik 2 / 2.9 |
72 |
≈120 |
15.2 |
≤711 |
≥96 |
≤0.53 |
≥101 |
|
13 |
Opgw-72b1.3-120- [74; 114] |
1 / 3.2 / 40as + 4 / 3.0 / 40as + 12 / 3.0 / 40as, Unit Optik 2 / 2.9 |
72 |
≈120 |
15.2 |
≤591 |
≥74 |
≤0.40 |
≥114 |
|
14 |
Opgw-36B1.3-130- [155; 85] |
1 / 3.2 / 20as + 5 / 3.0 / 20as + 12 / 3.0 / 20as, Unit Optik 1 / 2.9 |
36 |
≈130 |
15.2 |
≤879 |
≥155 |
≤0.72 |
≥85 |
|
15 |
Opgw-36B1.3-130- [102; 114] |
1 / 3.2 / 30as + 5 / 3.0 / 30as + 12 / 3.0 / 30as, Unit Optik 1 / 2.9 |
36 |
≈130 |
15.2 |
≤751 |
≥102 |
≤0.50 |
≥114 |
|
16 |
Opgw-36B1.3-130- [79; 137] |
1 / 3.2 / 40as + 5 / 3.0 / 40as + 12 / 3.0 / 40as, Unit Optik 1 / 2.9 |
36 |
≈130 |
15.2 |
≤624 |
≥79 |
≤0.40 |
≥137 |
|
17 |
Opgw-36b1.3-140- [175; 100] |
1 / 3.3 / 20as + 5 / 3.2 / 20as + 12 / 3.2 / 20as, Unit Optik 1 / 3.1 |
36 |
≈140 |
16.1 |
≤995 |
≥175 |
≤0.65 |
≥100 |
|
18 |
Opgw-36b1.3-140- [115; 140] |
1 / 3.3 / 30as + 5 / 3.2 / 30as + 12 / 3.2 / 30as, Unit Optik 1 / 3.1 |
36 |
≈140 |
16.1 |
≤850 |
≥115 |
≤0.45 |
≥140 |
|
19 |
Opgw-36b1.3-145- [86; 170] |
1 / 3.3 / 20as + 5 / 3.2 / 20as + 12 / 3.2 / AA, Unit Optik 1 / 3.1 |
36 |
≈49 ≈96 (AA) |
16.1 |
≤611 |
≥86 |
≤0.31 |
≥170 |
|
20 |
Opgw-48b1.3-150- [182; 123] |
1 / 3.4 / 20as + 5 / 3.3 / 20as + 12 / 3.3 / 20as, Unit Optik 1 / 3.2 |
48 |
≈150 |
16.6 |
≤1055 |
≥182 |
≤0.60 |
≥123 |
|
21 |
Opgw-48b1.3-150- [122; 165] |
1 / 3.4 / 30as + 5 / 3.3 / 30as + 12 / 3.3 / 30AS, Unit Optik 1 / 3.2 |
48 |
≈150 |
16.6 |
≤901 |
≥122 |
≤0.42 |
≥165 |
|
22 |
Opgw-48b1.3-150- [95; 195] |
1 / 3.4 / 40as + 5 / 3.3 / 40as + 12 / 3.3 / 40as, Unit Optik 1 / 3.2 |
48 |
≈150 |
16.6 |
≤747 |
≥95 |
≤0.33 |
≥195 |
|
23 |
Opgw-72B1.3-150- [172; 110] |
1 / 3.4 / 20as + 4 / 3.3 / 20as + 12 / 3.3 / 20as, Unit Optik 2 / 3.2 |
72 |
≈150 |
16.6 |
≤998 |
≥172 |
≤0.64 |
≥110 |
|
24 |
Opgw-72B1.3-150- [116; 147] |
1 / 3.4 / 30as + 4 / 3.3 / 30as + 12 / 3.3 / 30AS, Unit Optik 2 / 3.2 |
72 |
≈150 |
16.6 |
≤853 |
≥116 |
≤0.45 |
≥147 |
|
25 |
Opgw-48b1.3-170- [198; 150] |
1 / 3.6 / 20AS + 5 / 3.5 / 20as + 12 / 3.5 / 20as, Unit Optik 1 / 3.4 |
48 |
≈170 |
17.6 |
≤1190 |
≥198 |
≤0.54 |
≥150 |
|
26 |
Opgw-72B1.3-170- [199; 156] |
1 / 3.8 / 20AS + 4 / 3.6 / 20as + 12 / 3.6 / 20AS, Unit Optik 2 / 3,5 |
72 |
≈170 |
18.2 |
≤1187 |
≥199 |
≤0.54 |
≥156 |
|
27 |
Opgw-48b1.3-180- [252; 125] |
1/48 / 14as + 5 / 3.6 / 14as + 12 / 3.6 / 14as, Unit Optik 1 / 3,5 |
48 |
≈180 |
18.2 |
≤1372 |
≥252 |
≤0.72 |
≥125 |
|
28 |
Opgw-48b1.3-180- [211; 175] |
1 / 3.8 / 20AS + 5 / 3.6 / 20as + 12 / 3.6 / 20AS, Unit Optik 1 / 3,5 |
48 |
≈180 |
18.2 |
≤1255 |
≥211 |
≤0.50 |
≥175 |
|
29 |
Opgw-48b1.3-180- [147; 234] |
1/48 / 30AS + 5 / 3.6 / 30as + 12 / 3.6 / 30AS, Unit Optik 1 / 3,5 |
48 |
≈180 |
18.2 |
≤1071 |
≥147 |
≤0.35 |
≥234 |
|
30 |
Opgw-48b1.3-180- [113,262] |
1 / 3.8 / 40as + 5 / 3.6 / 40as + 12 / 3.6 / 40as, Unit Optik 1 / 3,5 |
48 |
≈180 |
18.2 |
≤888 |
≥113 |
≤0.28 |
≥262 |
|
31 |
Opgw-48b1.3-235- [268; 243.4] |
1 / 2.7 / 20AS + 4 / 2.5 / 20as + 12 / 2.5 / 20as + 13 / 3.8 / 20as, Unit Optik 1 / 3,5 |
48 |
≈235 |
20.3 |
≤1594 |
≥268 |
≤0.38 |
≥243.4 |
|
Item |
Tes Cara |
Syarat |
|
Ketegangan |
IEC 60794-1-2-E1 Muja: Miturut struktur kabel Conto Length: Ora kurang saka 10m, dawane sing gegandhengan ora kurang saka100m Duration Wektu: 1min |
40% rt Ora ana tambahan bre stain (0,01%), ora ana tambahan Attenuation (0.03db). 60% rt fi bre st st slials≤0.25%, tambahan Attenuation≤0.05DB (Ora Attenuasi tambahan sawise tes). |
|
Tresna |
IEC 60794-1-2-E3 Muja: Miturut tabel ndhuwur, telung poin Duration Wektu: 10min |
Tambahan Attenuation ing 1550nm ≤0.05db / Fi Bro; Ora ngrusak unsur |
|
Banyu Penetrasi |
IEC 60794-1-2-F5B Wektu : 1 jam sampel dawa: 0.5m Banyu Dhuwur: 1m |
Ora bocor banyu. |
|
Suhu Muter |
IEC 60794-1-2-F1 Conto Length: Ora kurang saka 500m Suhu kisaran: -40 ℃ nganti + 65 ℃ Siklus: 2 Suhu Tes Muter Dwell Wektu: 12h |
The Ngganti ing Attenuation Coe Ffi Cient bakal kurang saka 0.1db / km ing 1550nm. |
