Properti mekanik lan suhu sing apik
Rintangan hidrolisis sing apik lan kekuatan sing dhuwur
Senyawa Isi Tube Khusus Mesthekake Perlindhungan Serat Kritis
Rintangan tekanan lateral sing apik lan lemes
Wrapping FrP njamin kekuatan tegor kabel lan nyedhiyakake perlindungan sing apik kanggo tabung longgar
Bungkus Frp lan FRP tape waja nggawe kabel duwe kinerja rodent-bukti sing apik banget
Sheath Polyethelin (PE) duwe resistansi apik kanggo radiasi UV
Diameter cilik, bobot entheng lan instalasi sing ramah
Kabel gyqfxty73 tundhuk karo standar YDT 769-2010 uga IEC 60794-1.

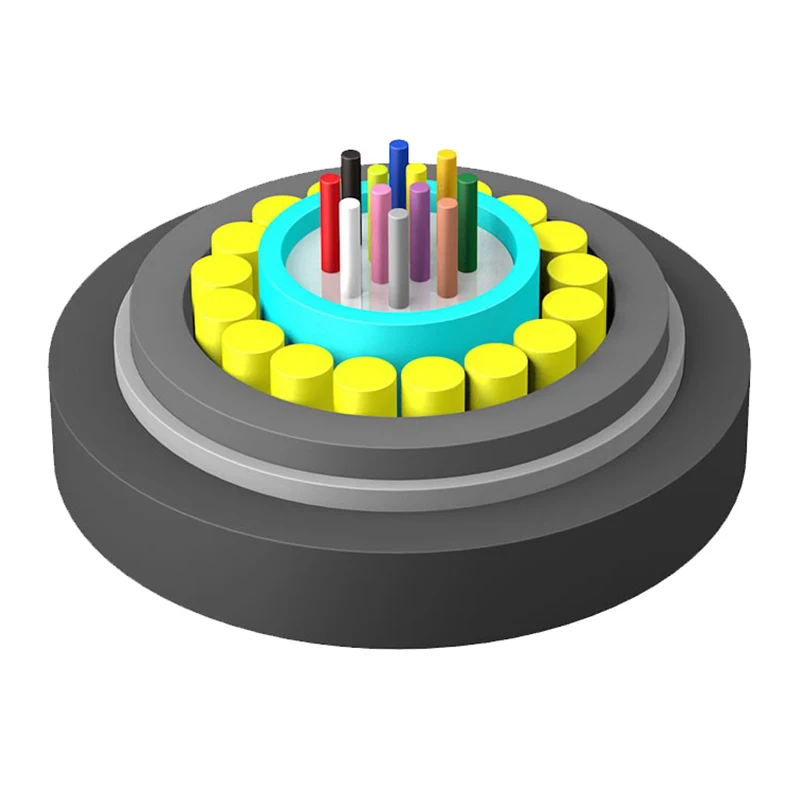

1.fibre
2.Pancar senyawa
3.loose tabung
4.FRP
Bahan ngisi
6.pe
Bahan-bahan pamblokiran 7 banyu
8.frp tape
9.Pe
|
Jinis kabel (Tambah 2 serat) |
Count regiber |
Bobot kabel (Ref) (kg / km) |
Kekuwatan tensile Jangka panjang / jangka pendek (n) |
Rintangan crush Dongeng / Short Term (N / 100mm) |
Bending radius Statik / Dinamis (MM) |
|
Gyqfxty73-2 ~ 12xn |
2 ~ 12 |
97 |
600/1500 |
1000/3000 |
10 / 20d |
|
Gyqfxty73-12 ~ 24XN |
14 ~ 24 |
111 |
|||
|
Gyqfxty73-26 ~ 36XN |
26 ~ 36 |
148 |
Simpenan / Suhu operasi: -40 ℃ - + 70 ℃
|
Jinis serat |
Attenuation (+ 20 ℃) |
Bandwidth |
Aperture angka |
Gelombang gelombang gelombang gelombang λcc |
||||
|
@ 850nm |
@ 1300nm |
@ 1310nm |
@ 1550nm |
@ 850nm |
@ 1300nm |
|||
|
G.652 |
--- |
--- |
≤0.36db / km |
≤0.22db / Km |
--- |
--- |
--- |
≤1260nm |
|
G.655 |
--- |
--- |
≤0.40db / km |
≤0.23db / km |
--- |
--- |
--- |
≤1450nm |
|
50 / 125μμm |
≤3.3db / km |
≤1.2db / km |
--- |
--- |
≥500mhz · km |
≥500mhz · km |
0.200 ± 0.015na |
--- |
|
62.5 / 125μm |
≤3.5db / km |
≤1.2db / km |
--- |
--- |
≥200MHZ · km |
≥500mhz · km |
0.275 ± 0.015na |
--- |
Cathetan:
a. Suffix XN nuduhake jinis serat
b. Pengaturan warna serat lan tabung kasebut ditemtokake ing meja identifikasi warna
c. CATI-TUBE-TUBE 73 Kabel Optik anti-roda
