Desain Fiber Ribbon Tinggi
Unsur pengenuhan aramid menehi kekuatan tegor sing apik banget
Bahan njaba yaiku tahan karat, anti banyu, tahan UV, Flame-Retardant lan ramah lingkungan.
Distribusi kabel ing njeroor
Sambungake antarane instrumen, peralatan komunikasi
Tundhuk karo standar YD / T 1258.5, Icea-596, GR-409, IEC 60794-2-30, lsp.

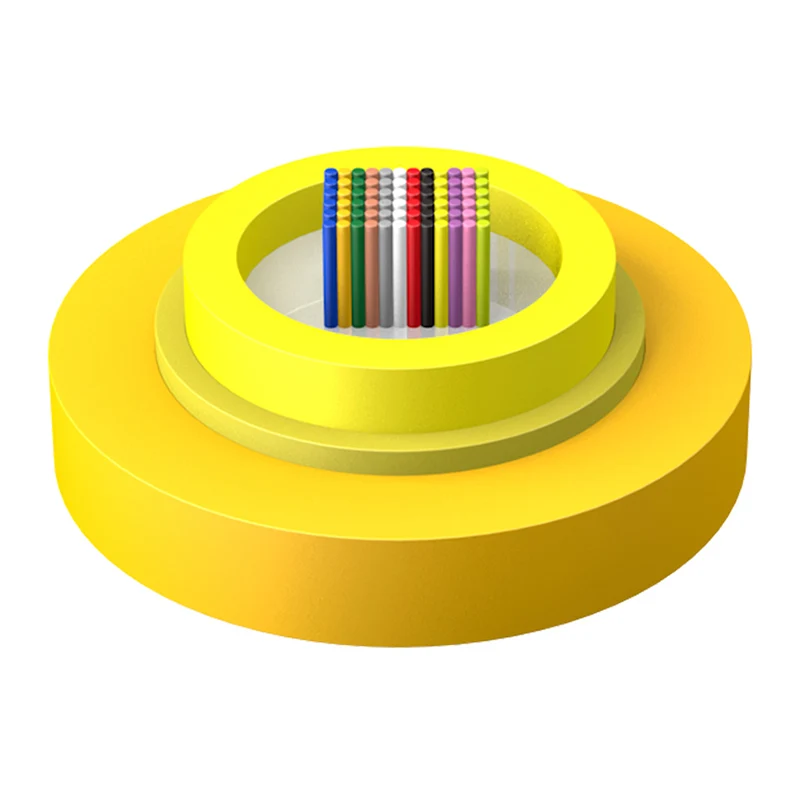

1. Ribbon serat
2 .. tabung longgar
3 .. benang Aramid
4 .. metu jaket
|
Model kabel |
Count regiber |
Bobot kabel (Ref) (kg / km) |
Kekuwatan tensile Jangka panjang / jangka pendek |
Rintangan crush Jangka panjang / jangka pendek (N / 100mm) |
Bending radius Dinamika / statis (mm) |
|
Gjfdv-48 |
12f × 4 |
84 |
200/660 |
300/1000 |
25d / 12.5D |
|
GJFDV-72 |
12f × 6 |
90 |
200/660 |
300/1000 |
25d / 12.5D |
|
GJFDV-96 |
12f × 8 |
100 |
200/660 |
300/1000 |
25d / 12.5D |
|
GJFDV-144 |
12f × 12 |
125 |
200/660 |
300/1000 |
25d / 12.5D |
|
Jinis serat |
Attenuation |
OFL |
Bandwidth Mode Efektif |
10 Gbit Ethernet Link Link |
Radius Bend minimal |
|||
|
Kondisi |
1310 / 1550nm |
850 / 1300NM |
850 / 1300NM |
850nm |
850nm |
/ |
||
|
Nilai khas |
Nilai maksimal |
Nilai khas |
Nilai maksimal |
|||||
|
Unit |
db / km |
db / km |
db / km |
db / km |
MHz.KM |
MHz.KM |
m |
mm |
|
G657a1 |
0.36 / 0.22 |
0,5 / 0.4 |
--- |
--- |
--- |
--- |
--- |
10 |
|
G657a2 |
0.36 / 0.22 |
0,5 / 0.4 |
--- |
--- |
--- |
--- |
--- |
7.5 |
|
50/125 |
--- |
--- |
3.0 / 1.0 |
3.5 / 1,5 |
≥500 / 500 |
--- |
--- |
30 |
|
62.5 / 125 |
--- |
--- |
3.0 / 1.0 |
3.5 / 1,5 |
≥200 / 500 |
--- |
--- |
30 |
|
Om3 |
--- |
--- |
3.0 / 1.0 |
3.5 / 1,5 |
≥1500 / 500 |
≥2000 |
≤300 |
30 |
|
Om4 |
--- |
--- |
3.0 / 1.0 |
3.5 / 1,5 |
≥3500 / 500 |
≥4700 |
≤550 |
30 |
Suhu / Panyimpen / Panyimpen / Suhu: -20 ℃ - + 60 ℃, suhu instalasi: -5 ℃ - + 50 ℃
