Kabel Optik Optik Multi waé-Tujuan (≤24F)

Kabotong Optik Optik Multifikasi (≤24F) nggunakake macem-macem serat optik sing kurang amarga medium polivinfl klorida (lszh, asap-asap, rokok, asap-asap, FLAME-Retardant) sarung.

Kirim Pitakonan

Deskripsi Produk

Karakteristik

Serat buffer sing gampang gampang diikat

Serat Buffer sing kenceng duwe kinerja retace sing apik banget

Benang Aramid minangka Anggota Kekuwatan Gawe kabel duwe kekuwatan tentile sing apik banget

Bahan njaba yaiku tahan karat, anti banyu, tahan UV, Flame-Retardant lan ramah lingkungan.

Aplikasi

Indoor Sembarang Distribusi Kabel

Kabel Distribusi Backbone

Jumper serat optik multi

Standar

Ketemu standar YD / T 1258.4, Icea-596, GR-409, IEC 60794-20 / 21, lan sapiturute, uga ana produk kanggo macem-macem bahan kanggo ketemu IEC60332-1 utawa iEc60332-C.

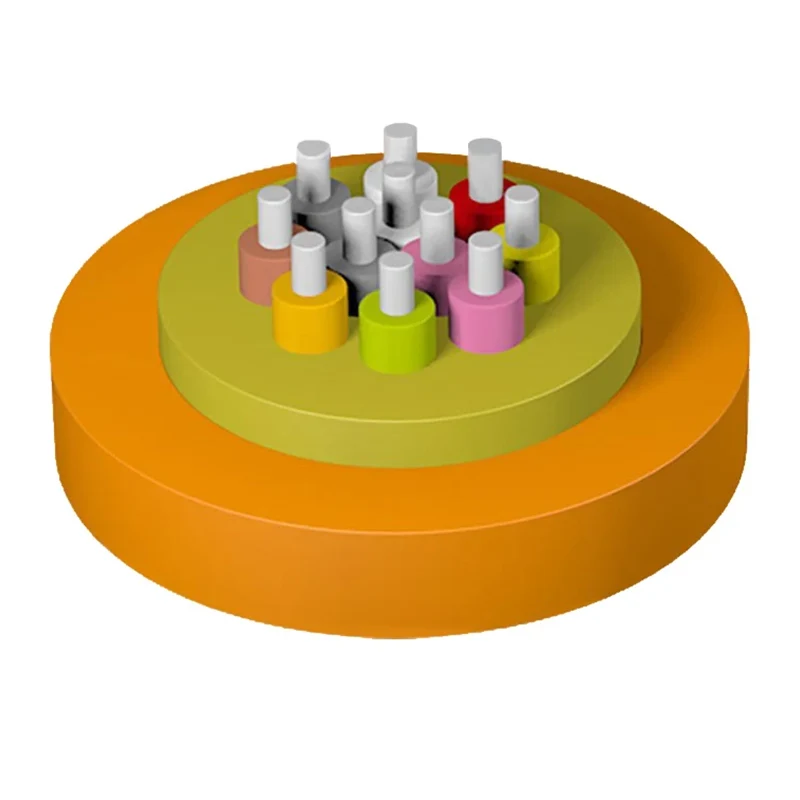

Gambar struktur

1. Buffer sing ketat

2 .. benang Aramid

3 .. jaket

Multi-Purpose Distribution Fiber Optic Cable (≤24f)

Paramèter teknis

Model kabel	Kabel Diameter (Ref) (mm)	Bobot kabel (Ref) (kg / km)		Kekuwatan tensile Jangka panjang / jangka pendek (N)	Rintangan crush Jangka panjang / jangka pendek (N / 100mm)	Bending radius Dinamika / statis (mm)
Model kabel	Kabel Diameter (Ref) (mm)	Jaket Pvc	Jaket lszh	Kekuwatan tensile Jangka panjang / jangka pendek (N)		Bending radius Dinamika / statis (mm)
04	4.8 ± 0.3	16	18	130/440	300/1000	20d / 10d
06	5.1 ± 0.3	20	23	130/440	300/1000	20d / 10d
08	5.6 ± 0,3	27	31	130/440	300/1000	20d / 10d
12	6.2 ± 0,3	32	36	130/440	300/1000	20d / 10d
24	8.1 ± 0.3	53	57	200/660	300/1000	20d / 10d

Karakteristik Optik

Jinis serat	Attenuation				OFL	Bandwidth Mode Efektif	10 Gbit Ethernet Link Link	Radius Bend minimal
Kondisi	1310 / 1550nm		850 / 1300NM		850 / 1300NM	850nm	850nm	/
Kondisi	Nilai khas	Nilai maksimal	Nilai khas	Nilai maksimal	850 / 1300NM	850nm	850nm	/
Unit	db / km	db / km	db / km	db / km	MHz.KM	MHz.KM	m	mm
G652d	0.36 / 0.22	0,5 / 0.4	---	---	---	---	---	16
G657a1	0.36 / 0.22	0,5 / 0.4	---	---	---	---	---	10
G657a2	0.36 / 0.22	0,5 / 0.4	---	---	---	---	---	7.5
50/125	---	---	3.0 / 1.0	3.5 / 1,5	≥500 / 500	---	---	30
62.5 / 125	---	---	3.0 / 1.0	3.5 / 1,5	≥200 / 500	---	---	30
Om3	---	---	3.0 / 1.0	3.5 / 1,5	≥1500 / 500	≥2000	≤300	30
Om4	---	---	3.0 / 1.0	3.5 / 1,5	≥3500 / 500	≥4700	≤550	30
