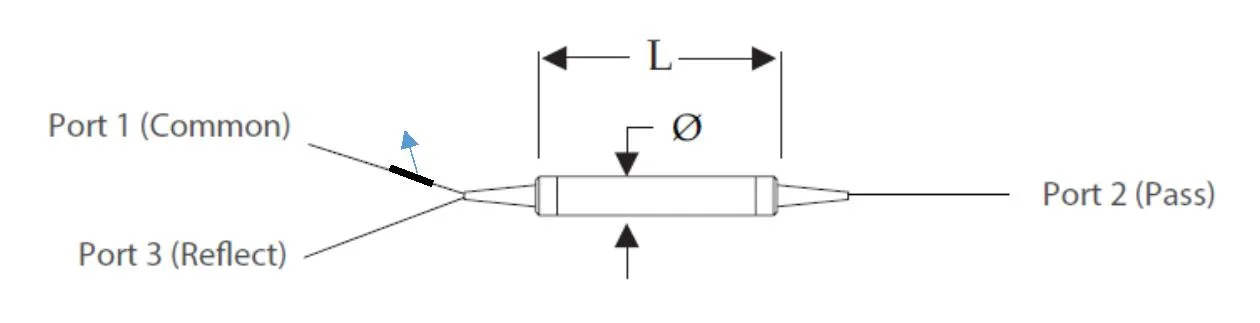

Series tunggal cwdm (1x2)

ParamèterSimbolKinerjaUnitRangkaa gelombangWR1260 ~ 1620nmGelombang Pusat SaluranCw1271,1291,1311, 1331, 1351,13711471,1491,1511, 1531, 1551,1571nmJarak saluranSp20nmBandwidth Passband @ -1dbPbλc ± 6,5nmRugi sisipanIlCithakan: ≤0.40dbRefleksi: ≤0.40dbSaluran sing ana gandhenganeAmba≥ 30dbS......

Kirim Pitakonan

Deskripsi Produk

Paramèter	Simbol	Kinerja	Unit
Rangkaa gelombang	WR	1260 ~ 1620	nm
Gelombang Pusat Saluran	Cw	1271,1291,1311, 1331, 1351,1371 1471,1491,1511, 1531, 1551,1571	nm
Jarak saluran	Sp	20	nm
Bandwidth Passband @ -1db	Pb	λc ± 6,5	nm
Rugi sisipan	Il	Cithakan: ≤0.40	db
Rugi sisipan	Il	Refleksi: ≤0.40	db
Saluran sing ana gandhengane	Amba	≥ 30	db
Saluran sing ora ana gandhengane	Ison	≥ 40	db
Pengasingan refleksi	ISOR	≥ 13	db
Kerugian gumantung polarisasi	PDL	≤ 0.1	db
Wangsul	Rl	≥ 50	db
Directivity	Dir	≥ 50	db
Penyebaran mode polarisasi	PMD	≤ 0.1	db
Daya input optik	P	≤ 300	mw
Suhu operasi	Ndhuwur	-25 ~ +70	℃
Suhu panyimpenan	Sendhok teh	-40 ~ +85	℃
Jinis serat		Corning SMF-28 Ultra Serat (G657 a1), serat gundhul
Dawane serat		≥1.2	m

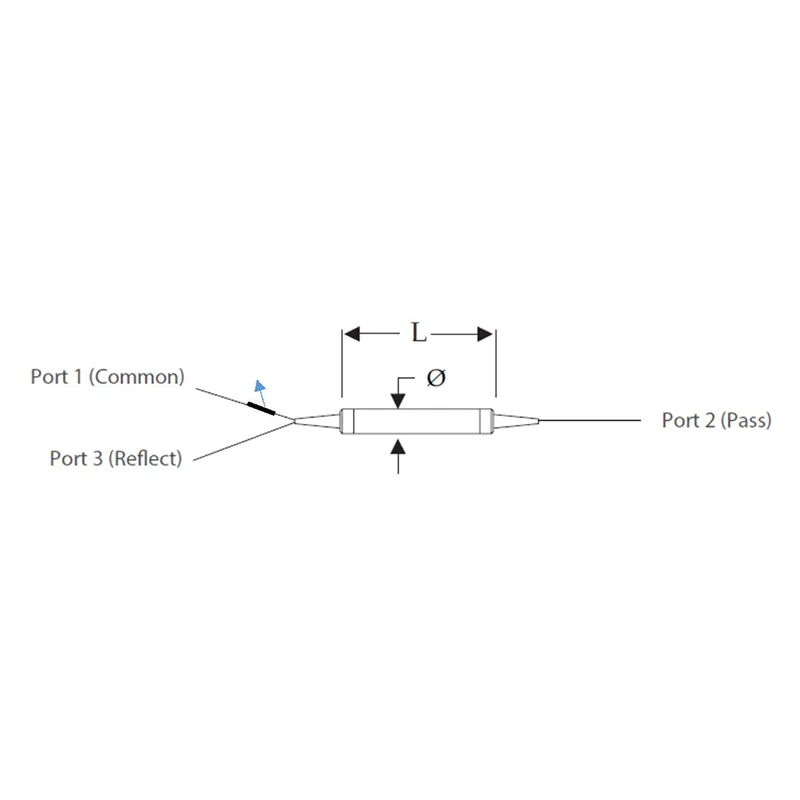

Dimensi Paket	Pkg	Φ4.0 × 30 Φ5.5 × 35 utawa φ5.5 × 38	mm
