1 * 12 1 * 24 PLC Splitter

1x12 / 1 × 24 Paket Tube Tube Plc Splitter 60x12x4 lan 80X20X4mm, kanthi tabung tabung 900μm 1,0 + 0.1 /-apk.Spesifikasi kinerja:ParamèterSimbolSpesifikasiUnitNomer saluranCh1 × 121 × 24Gelombang Operasi1260 ~ 1650nmDawane Tes1310/1550nmRasio spektrum8.333%4.166%%Sisipan rugi1Il≤......

Kirim Pitakonan

Deskripsi Produk

1x12 / 1 × 24 Paket Tube Tube Plc Splitter 60x12x4 lan 80X20X4mm, kanthi tabung tabung 900μm 1,0 + 0.1 /-apk.

Spesifikasi kinerja:

Paramèter	Simbol	Spesifikasi		Unit
Nomer saluran	Ch	1 × 12	1 × 24
Gelombang Operasi		1260 ~ 1650		nm
Dawane Tes		1310/1550		nm
Rasio spektrum		8.333%	4.166%	%
Sisipan rugi1	Il	≤12.5	≤16.0	db
Kesatuan	Uni	≤1.2	≤1.6	db
Kerugian gumantung polarisasi	PDL	≤0.35	≤0.40	db
Wangsul	Rl	≥55		db
Directivity2	Dir	≥55		db
Daya Optik Input	P	100		mw
Jinis serat		Itu-t g657 a1 serat
Jinis Pigtail		Kabeh port: tabung longgar putih 900μm putih
Dawane input		1.0 + 0.1 / -0		m
Dawane output		1.0 + 0.1 / -0		m
Konektor		Kabeh port: SC / APC
Tandha kabel		1x12 PLC: Ing, 1,2 ... ... 11, 12 1x24 PLC: Ing, 1,2 ... ... 23, 24
Dimensi paket (l) × (w) × (h)	Pkg	1x12 PLC: 60x12x4 1x24 PLC: 80X20X6		mm
Suhu operasi	Ndhuwur	-40 ~ +85		℃
Suhu panyimpenan	TST	-40 ~ +85		℃

* CATETAN: 1. Kabeh nilai rugi sisipan kalebu ilang konektor.

Gambar Gambar:

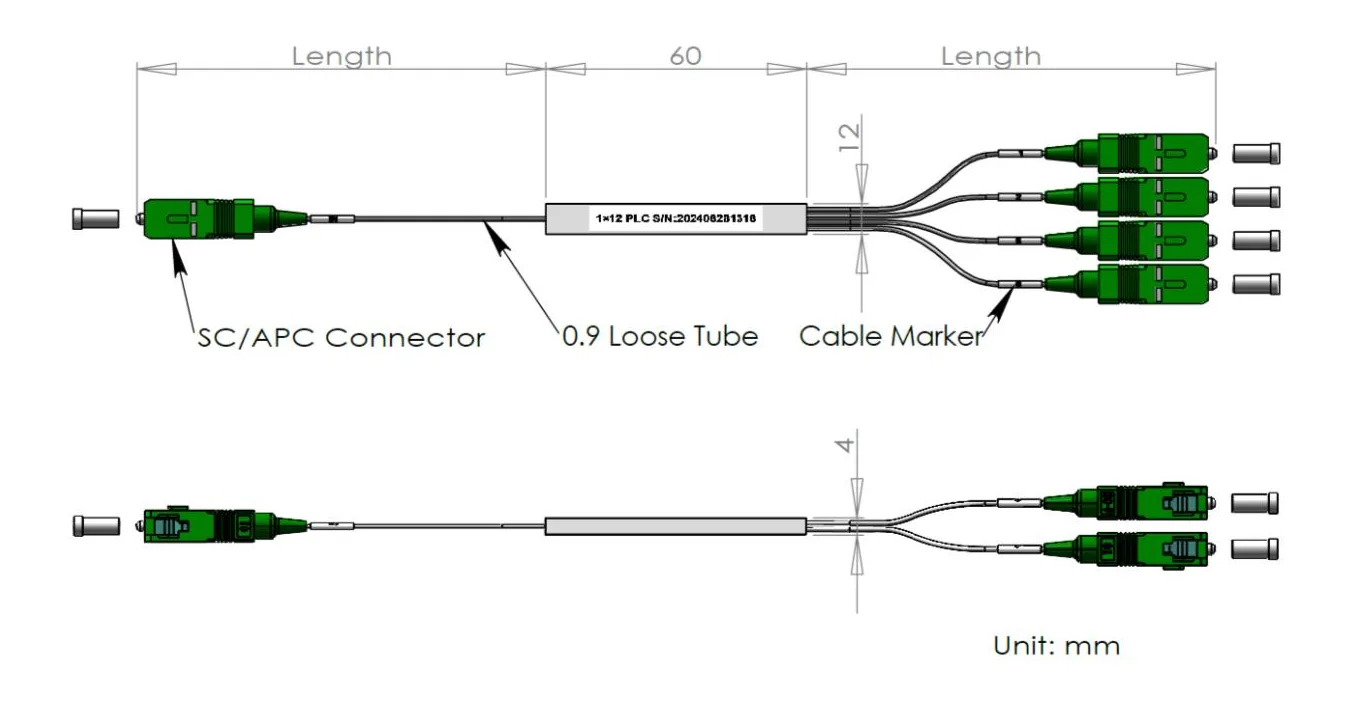

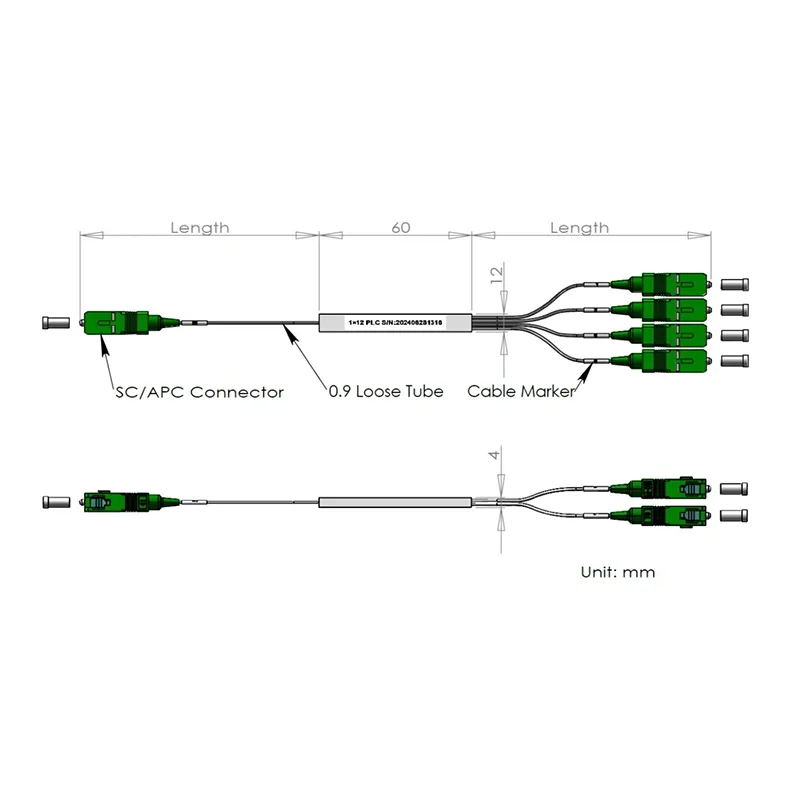

1x12 PLC Splitter

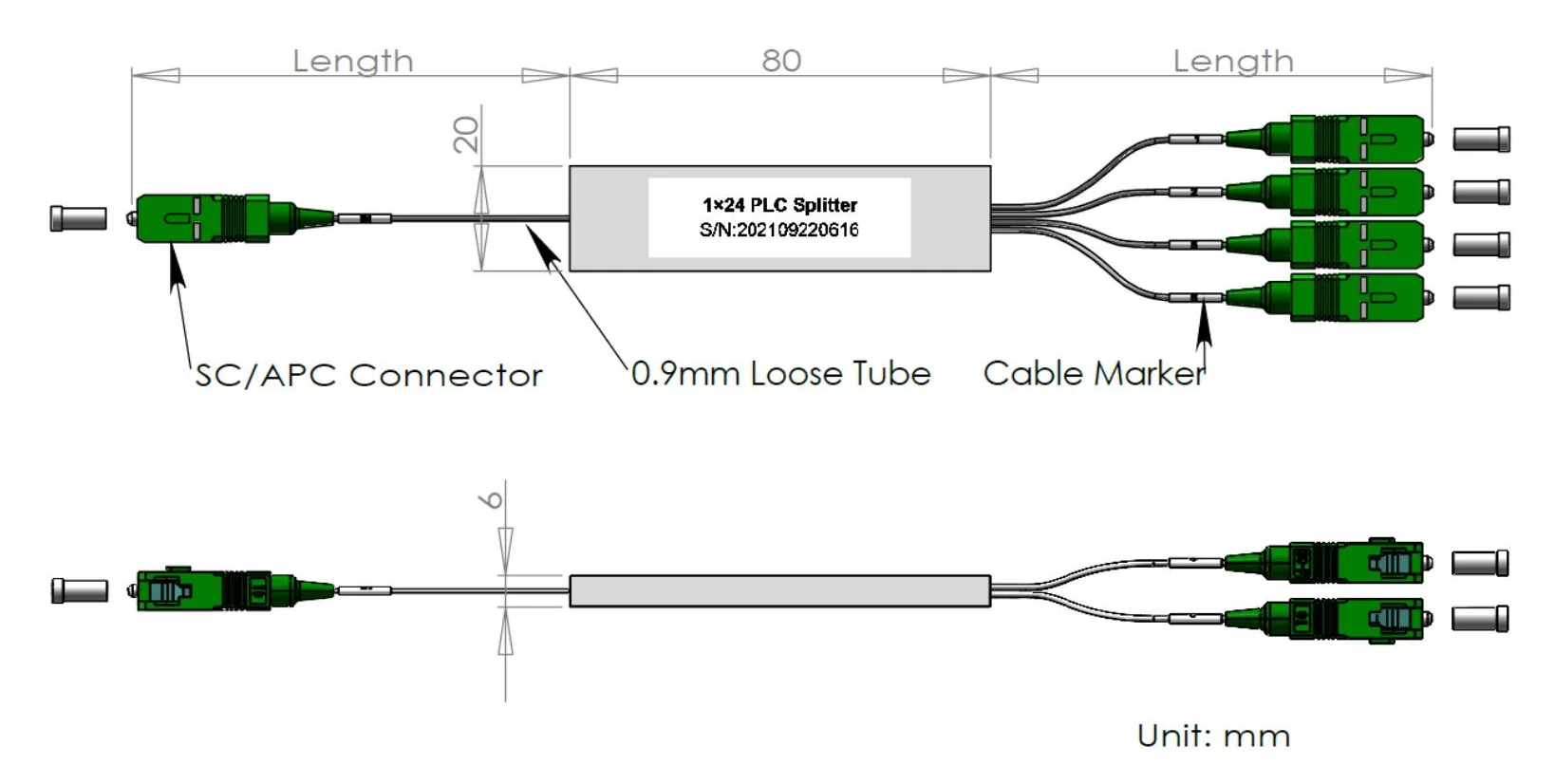

1x24 PLC Splitter

Laporan Tes:

1. Laporan tes kanthi nilai sing pas kalebu ing bungkusan.

Laporan Conto: 1x12 Mini 0,9mm PLC Splitter Data

Gelombang Operasi (NM)	1260-1650	Dating Ditampilake	2024/11/30
P / n:	1x12-0.9-ing 1.0m-out 1.0m-scapc	SIN:	21113000001
Jinis serat	G657a2	Dawane serat (m)	Ing11.0M / Out> 1.0m
Tipe Konektor	Sciapc	Dimensi paket (mm)	60x12x4
Suhu panyimpenan	-40 ~ + 85 ℃	Suhu operasi	-40 ~ + 85 ℃

ltem	The (DB)		PDL (DB)		RL (DB)
Gelombang (NM)	@ 1310	@ 1550	@ 1310	@ 1550	@ 1310	@ 1550
Spek.	Max.12.50		Max.0.35		≥55
Port 1	12.43	12.38	0.14	0.07	Pass	Pass
Port 2	12.24	12.35	0.16	0.06	Pass	Pass
Port 3	12.22	12.20	0.12	0.07	Pass	Pass
Port 4	12.30	12.24	0.04	0.04	Pass	Pass
Port 5	12.24	12.25	0.11	0.05	Pass	Pass
Port 6	12.35	12.29	0.11	0.01	Pass	Pass
Port 7	12.42	12.44	0.21	0.11	Pass	Pass
Port 8	12.23	12.18	0.11	0.01	Pass	Pass
Port 9	12.27	12.19	0.21	0.10	Pass	Pass
Port 10	12.38	12.17	0.02	0.04	Pass	Pass
Port 11	12.29	12.21	0.11	0.06	Pass	Pass
Port 12	12.42	12.27	0.08	0.07	Pass	Pass
Input	Na				Na
Max	12.43	12.44	0.21	0.11	N / a
Min.	12.22	12.18	0.04	0.01	N / a
Rata-rata	12.30	12.29	0.13	0.05	Na
Kesatuan (≤0.8db)	0.21	0.27	Directivity (DB)		> 55
