1 * 4 1 * 8 PLC Splitter (jinis serat sing gundhul)

Paket Tube Tube 1x4 / 1 × 8 Plc 40x4x4mm, kanthi serat bare 250μm 2,5 + 0.1 / -0m, ora ana koneksi.Spesifikasi kinerja:ParamèterSimbolSpesifikasiUnitNomer saluranCh1 × 41 × 8Gelombang Operasi1260 ~ 1650nmDawane Tes1310/1550nmRasio spektrum25%12,5%%Sisipan rugi1Il≤7.0≤10.5dbKesatu......

Kirim Pitakonan

Deskripsi Produk

Paket Tube Tube 1x4 / 1 × 8 Plc 40x4x4mm, kanthi serat bare 250μm 2,5 + 0.1 / -0m, ora ana koneksi.

Spesifikasi kinerja:

Paramèter	Simbol	Spesifikasi		Unit
Nomer saluran	Ch	1 × 4	1 × 8
Gelombang Operasi		1260 ~ 1650		nm
Dawane Tes		1310/1550		nm
Rasio spektrum		25%	12,5%	%
Sisipan rugi1	Il	≤7.0	≤10.5	db
Kesatuan	Uni	≤0.60	≤0.80	db
Kerugian gumantung polarisasi	PDL	≤0.20	≤0.20	db
Wangsul	Rl	≥55		db
Directivity2	Dir	≥55		db
Daya Optik Input	P	100		mw
Jinis serat		Serat A2 G657
Jinis Pigtail		Topport: Serat bare 250μm
Jinis Pigtail		1 ~ 4CH Outport: 1 * 4 saluran 250um Ribbon serat 1 ~ 8CH Outport: 2 * 4 saluran 250um Ribbon serat
Dawane input		2,5 + 0.1 / -0		m
Dawane output		2,5 + 0.1 / -0		m
Konektor		Kabeh port: ora ana konektor
Warna serat		INPORT: Warna alami
		Outport 1 ~ 4ch: Biru, Oranye, Ijem, Brown,
		1 ~ 8CH Outport: biru, oranye, ijo, coklat, Grey, Putih, Abang, Ireng
Dimensi Paket	Pkg	40 (l) × 4 (w) × 4 (h)		mm
Suhu operasi	Ndhuwur	-40 ~ +85		℃
Suhu panyimpenan	TST	-40 ~ +85		℃

* CATETAN: 1. Kabeh nilai rugi sisipan ora kalebu kelangan konektor, kalebu konektor, kalebu kerugian ganti + 0.3DB.

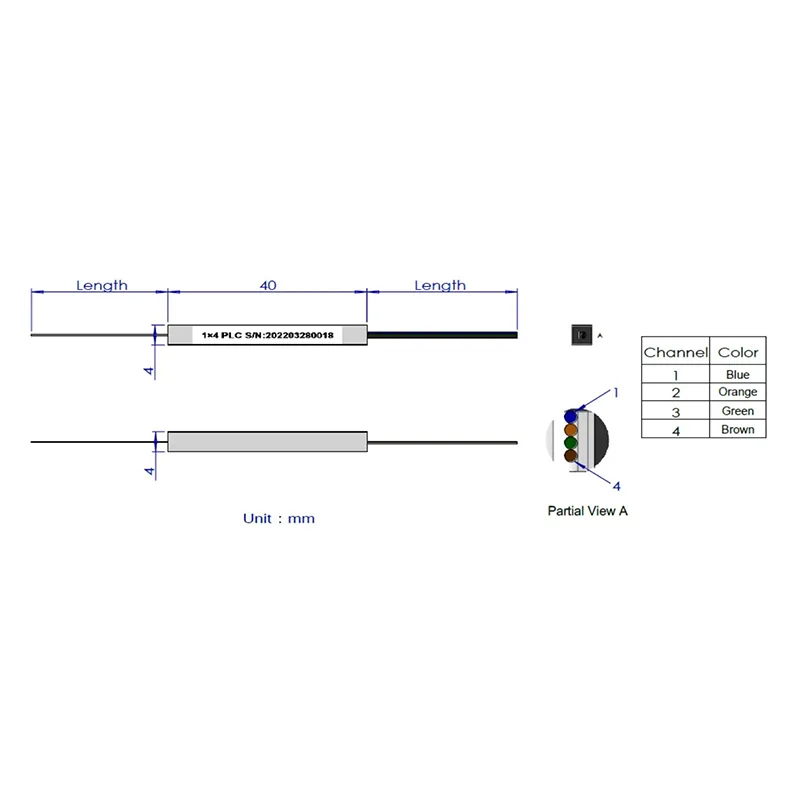

Gambar Gambar:

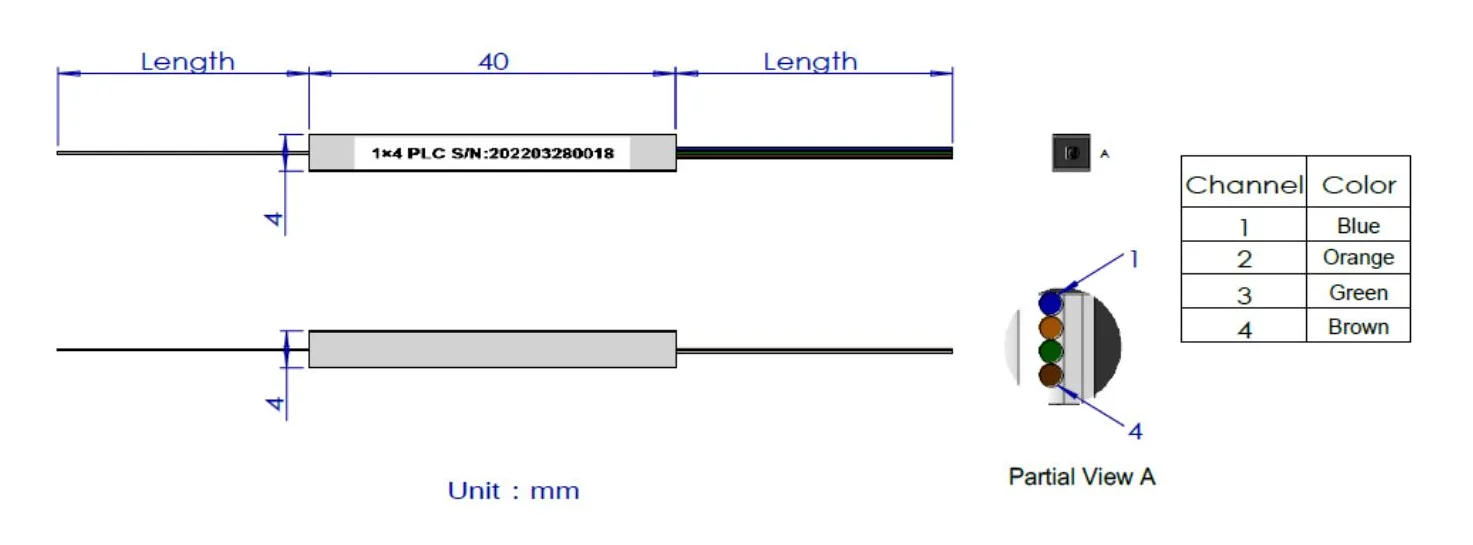

1x4 PLC Splitter

1x4 PLC Splitter

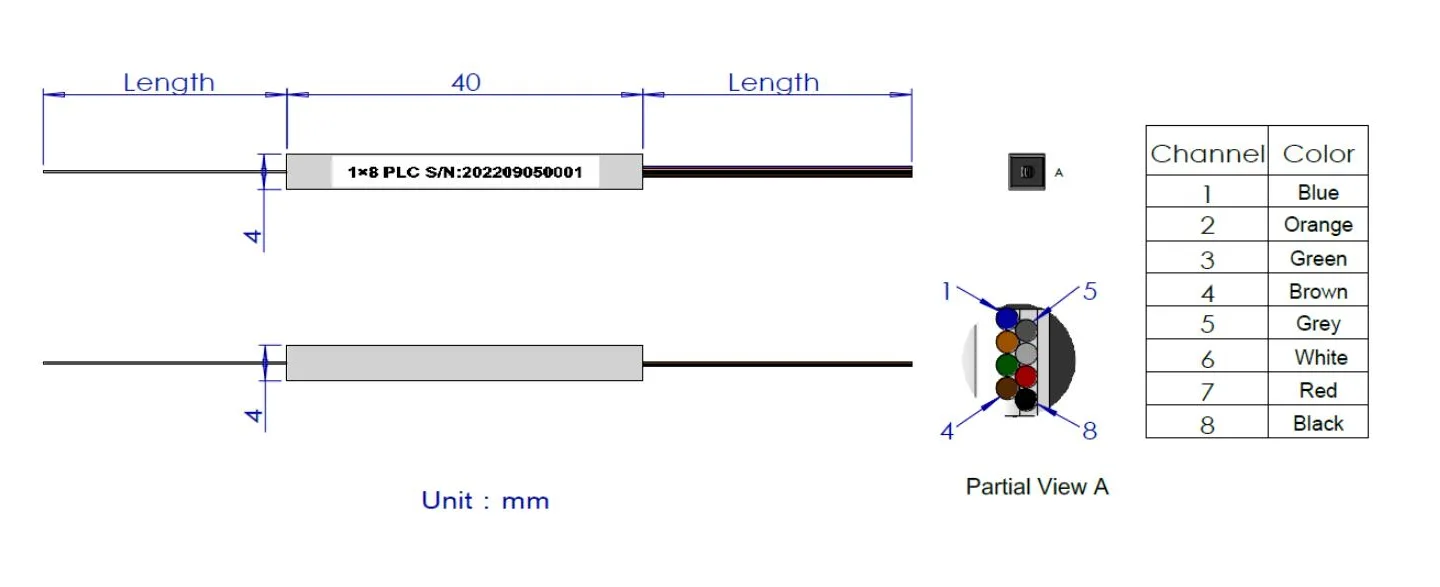

1x8 PLC Splitter

1x8 PLC Splitter

Informasi Pesenan

Plc

Tipe Plc

Gelombang

Tipe kothak

Jinis serat

Dawane serat

Konektor

Plc splitter

102 = 1x2

104 = 1x4

108 = 1x8

116 = 1x16

132 = 1x32

164 = 1x64

204 = 2x4

208 = 2x8

216 = 2x16

232 = 2x32

264 = 2x64

1 = 1310nm

2 = 1550nm

3 = 1310 & 1550nm

4 = 1260 ~ 1650nm

X = khusus

1 = tabung logam + serat gundhul

1 = tabung logam + tabung longgar

2 = kothak Abs 90x20x10

3 = kothak Abs 100x80X10

4 = kothak abs 120x80x18

5 = kothak Abs 140x120x20

6 = kothak logam

7 = 1RED 19 "Gunung Rack

X = khusus

1 = g652d

2 = g657a1

3 = g657a2

X = khusus

1 = 0.5m

2 = 1m

3 = 2m

4 = 3m

5 = adaptor

X = khusus

1 = ora ana 2 = FC / UPC

3 = FC / APC

4 = lc / UPC

5 = lc / apc

6 = SC / UPC

7 = SC / APC

X = khusus
