1 * 4 1 * 8 PLC Splitter

Paket tabung tabung 1x4 / 1/2/8 8 Plc Splitter 60x7x4mm, kanthi tabung tabung 900μm 1,0 + 0.1 /--0m, konektor apc.Spesifikasi kinerja:ParamèterSimbolSpesifikasiUnitNomer saluranCh1 × 41 × 8Gelombang Operasi1260 ~ 1650nmDawane Tes1310/1550nmRasio spektrum25%12,5%%Sisipan rugi1Il≤7.2≤10......

Kirim Pitakonan

Deskripsi Produk

Paket tabung tabung 1x4 / 1/2/8 8 Plc Splitter 60x7x4mm, kanthi tabung tabung 900μm 1,0 + 0.1 /--0m, konektor apc.

Spesifikasi kinerja:

Paramèter	Simbol	Spesifikasi		Unit
Nomer saluran	Ch	1 × 4	1 × 8
Gelombang Operasi		1260 ~ 1650		nm
Dawane Tes		1310/1550		nm
Rasio spektrum		25%	12,5%	%
Sisipan rugi1	Il	≤7.2	≤10.5	db
Kesatuan	Uni	≤0.8	≤1.0	db
Kerugian gumantung polarisasi	PDL	≤0.30	≤0.30	db
Wangsul	Rl	≥55		db
Directivity2	Dir	≥55		db
Daya Optik Input	P	100		mw
Jinis serat		Serat A1 G657
Jinis Pigtail		Pelabuhan COM: Tube longgar putih 900μm putih
Jinis Pigtail		Port 1 ~ 8C: tabung longgar putih 900μm putih
Dawane input		1.0 + 0.1 / -0		m
Dawane output		1.0 + 0.1 / -0		m
Konektor		Kabeh port: SC / APC
Tandha kabel		1x4 plc: 1,2 ... ... 3, 4 1x8 plc: 1,2 ... ... 7, 8
Dimensi paket (l) × (w) × (h)	Pkg	60x7x4		mm
Suhu operasi	Ndhuwur	-40 ~ +85		℃
Suhu panyimpenan	TST	-40 ~ +85		℃

* CATETAN: 1. Kabeh nilai rugi sisipan ora kalebu kelangan konektor, kalebu konektor, kalebu kerugian ganti + 0.3DB.

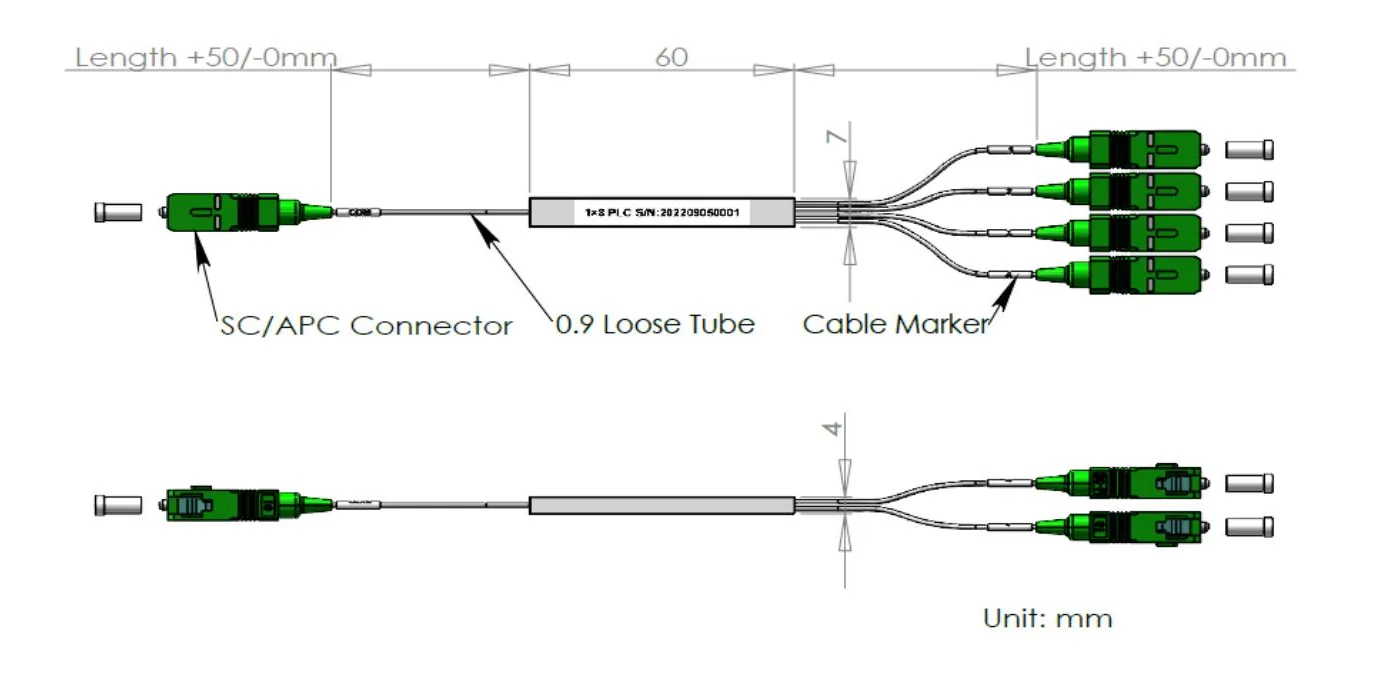

Gambar Gambar:

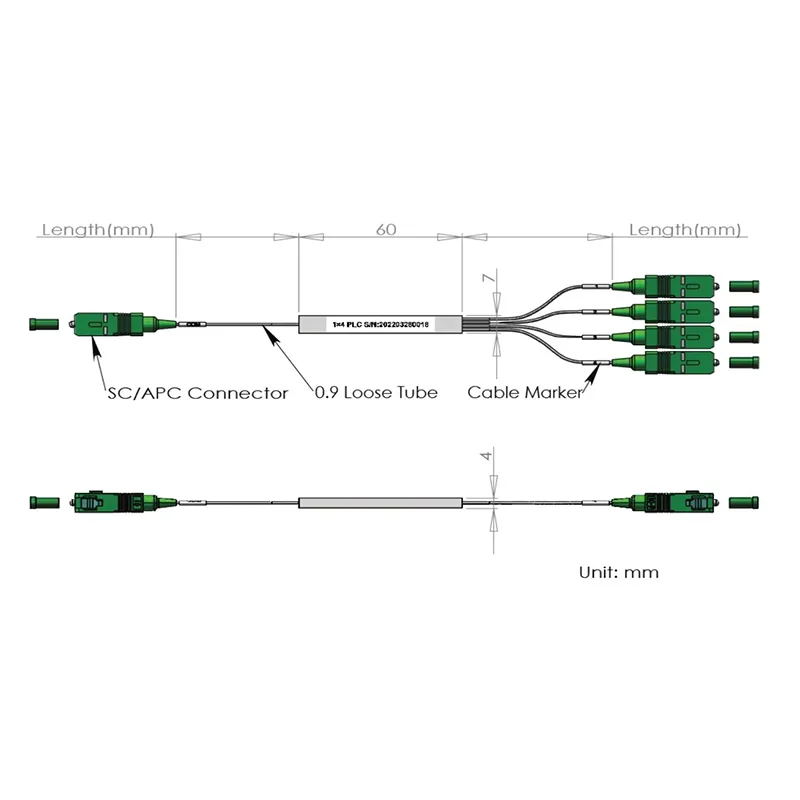

1x4 / 1×8 PLC Splitter Specification

Informasi Pesenan

Plc

Tipe Plc

Gelombang

Tipe kothak

Jinis serat

Dawane serat

Konektor

Plc splitter

102 = 1x2

104 = 1x4

108 = 1x8

116 = 1x16

132 = 1x32

164 = 1x64

204 = 2x4

208 = 2x8

216 = 2x16

232 = 2x32

264 = 2x64

1 = 1310nm

2 = 1550nm

3 = 1310 & 1550nm

4 = 1260 ~ 1650nm

X = khusus

1 = tabung logam + serat gundhul

1 = tabung logam + tabung longgar

2 = kothak Abs 90x20x10

3 = kothak Abs 100x80X10

4 = kothak abs 120x80x18

5 = kothak Abs 140x120x20

6 = kothak logam

7 = 1RED 19 "Gunung Rack

X = khusus

1 = g652d

2 = g657a1

3 = g657a2

X = khusus

1 = 0.5m

2 = 1m

3 = 2m

4 = 3m

5 = adaptor

X = khusus

1 = ora ana 2 = FC / UPC

3 = FC / APC

4 = lc / UPC

5 = lc / apc

6 = SC / UPC

7 = SC / APC

X = khusus
