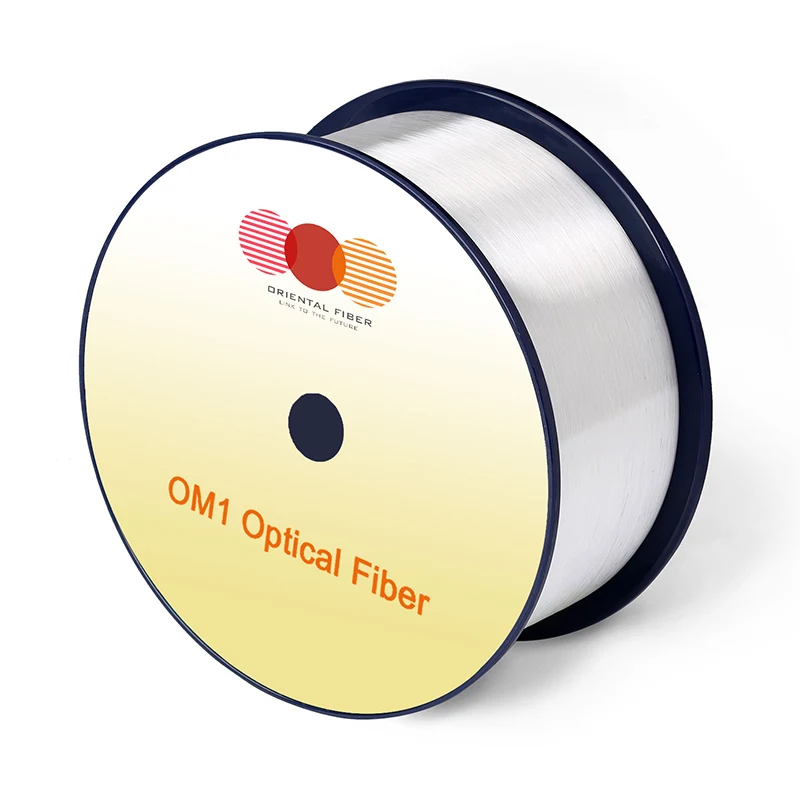

Serat Optical Multi-mode OM1

Karakteristik

Kahanan

Nilai sing ditemtokake

Unit

Karakter Geometis

Diameter inti

-

62.5 ± 2,5

[μm]

CATER NON-CREATHER

-

≤5.0

[%]

Diameter cladding

-

125.0 ± 1.0

[μm]

Cladding non-circularity

-

≤1.0

[%]

Diameter pelat

-

245 ± 7

[μm]

Cailing / Cladding Concentricity Erentricity Kesalahan

-

≤10.0

[μm]

Pelapisan Non-Circularity

-

≤6.0

[%]

Kesalahan inti / Cladding Concentricity

-

≤1.5

[μm]

Dawane Pangiriman

-

nganti 17,6

[Km / reel]

Karakteristik Optik

Attenuation

850nm

≤2.7

[DB / km]

1300nm

≤0.6

[DB / km]

Liwat bandwidth modal fi lled

850nm

≥200

[MHz · km]

1300nm

≥500

[MHz · km]

Aperture angka

-

0.275 ± 0,015

-

Indeks Refritactive Group

850nm

1.496

-

1300nm

1.491

-

Gelombang Delapur Zero, λ0

-

1320 ~ 1365

[nm]

Sloper Nol, S0

1320nm≤ λ01348NM

≤0.11

[PS / (NM2 · km)]

1348Nm≤ λ01365NM

≤0.001 (1458-L0)

[PS / (NM2 · km)]

Mundhak MacroBending

-

-

-

100 Radius @ 37,5 mm

850nm

≤0.50

[DB]

1300nm

≤0.50

[DB]

Karakteristik Backscatter

1300nm

Langkah (tegese pangukuran bidirectional)

-

≤0.10

[DB]

Irregularitas liwat length serat lan titik mandheg

-

≤0.10

[DB]

Kesuburan Attenuasi

-

≤0.10

[DB / km]

Karakteran Lingkungan

850nm & 1300NM

Suhu Suhu

-60 ℃ nganti 85 ℃

≤0.10

[DB / km]

Siklus suhu asor suhu

-10 ℃ nganti 85 ℃, 4% nganti 98% RH

≤0.10

[DB / km]

Gangguan banyu

23 ℃, 30 dina

≤0.10

[DB / km]

Panas garing

85 ℃, 30 dina

≤0.10

[DB / km]

Panas Damp

85 ℃, 85% RH, 30 dina

≤0.10

[DB / km]

Spesifikasi mekanik

Tes Bukti

-

≥9.0

[N]

-

≥1.0

[%]

-

≥100

[Kpsi]

Pasukan lapisan lapisan

Kekuwatan khas

1.5

[N]

Pasukan Peak

≥1.3, ≤8.9

[N]

Parameter keledakan stres dinamis stres (ND, khas)

-

20

-
