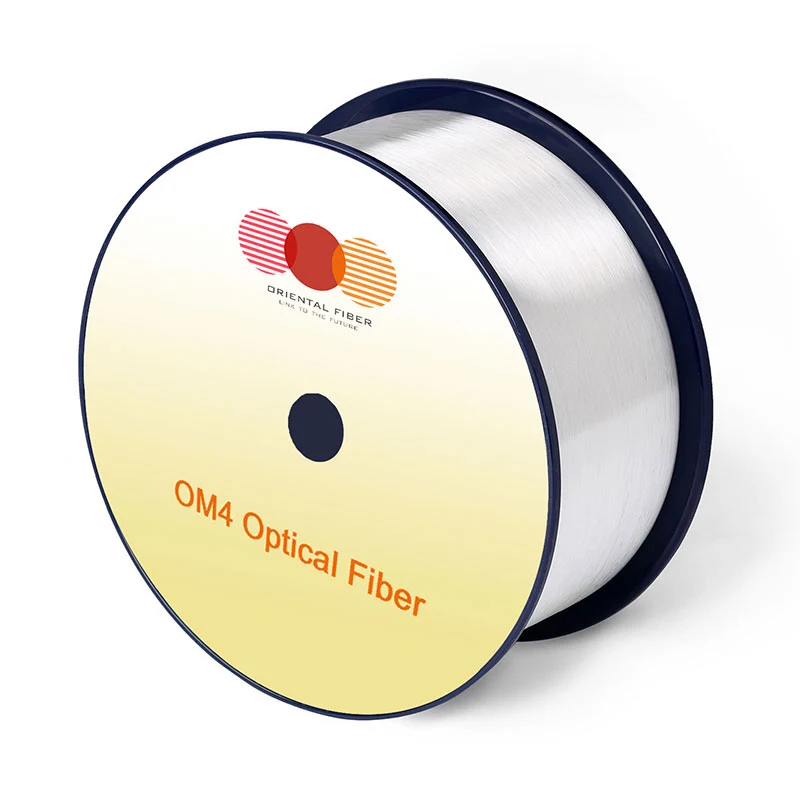

Serat Optik Multi-mode OM4

Karakteristik

Kahanan

Ditemtokake Nilai

Unit

Karakter Geometis

Diameter inti

-

50 ± 2,5

[μm]

CATER NON-CREATHER

-

≤5.0

[%]

Diameter cladding

-

125.0 ± 1.0

[μm]

Cladding non-circularity

-

≤0.6

[%]

Diameter pelat

-

245 ± 7

[μm]

Cailing / Cladding Concentricity Erentricity Kesalahan

-

≤10.0

[μm]

Pelapisan Non-Circularity

-

≤6.0

[%]

Kesalahan inti / Cladding Concentricity

-

≤1.0

[μm]

Dawane Pangiriman

-

munggah kanggo 17,6

[Km / reel]

Karakteristik Optik

Attenuation

850nm

≤2.4

[DB / km]

910nm

≤2.0

[DB / km]

1300nm

≤0.6

[DB / km]

Bandwidth modal sing lirik

850nm

≥3500

[MHz · km]

1300nm

≥500

[MHz · km]

Bandwidth Modal Efektif

850nm-870nm

≥4700

[MHz · km]

910nm

≥3100

[MHz · km]

Link Link

800gbase-SR8

100

[m]

800Gbasesr-4.2

100

[m]

Aperture angka

-

0.200 ± 0,015

-

Indeks Refritactive Group

850nm

1.482

-

1300nm

1.477

-

Gelombang Delapur Zero, λ0

-

1295-1340

[nm]

Sloper Nol, S0

1295nm≤01310nm

≤0.105

[PS / (NM2 · km)]

1310Nm≤≤01340nm

≤0.000375 (1590-L0)

[PS / (NM2 · km)]

Macrobending rugi1

-

-

-

2 dadi radius @ 15 mm

850nm

≤0.1

[DB]

1300nm

≤0.3

[DB]

2 dadi radius @ 7,5 mm

850nm

≤0.2

[DB]

1300nm

≤0.5

[DB]

Karakteristik Backscatter

1300nm

Langkah (tegese pangukuran bidirectional)

-

≤0.10

[DB]

Ora duwe aturan liwat dawa serat lan Titik mandheg

-

≤0.10

[DB]

Kesuburan Attenuasi

-

≤0.08

[DB / km]

Karakteran Lingkungan

850nm & 1300nm

Suhu Suhu

-60 ℃ nganti 85 ℃

≤0.10

[DB / km]

Siklus suhu asor suhu

-10 ℃ nganti 85 ℃, 4% nganti 98% RH

≤0.10

[DB / km]

Gangguan banyu

23 ℃, 30 dina

≤0.10

[DB / km]

Panas garing

85 ℃, 30 dina

≤0.10

[DB / km]

Panas Damp

85 ℃, 85% RH, 30 dina

≤0.10

[DB / km]

Spesifikasi mekanik

Tes Bukti

-

≥9.0

[N]

-

≥1.0

[%]

-

≥100

[Kpsi]

Pasukan lapisan lapisan

khas Kekuwatan rata-rata

1.5

[N]

Puncak meksa

≥1.3, ≤8.9

[N]

Korosi Stress Dinamis Paringer suscepily (ND, Khusus)

-

20

-
