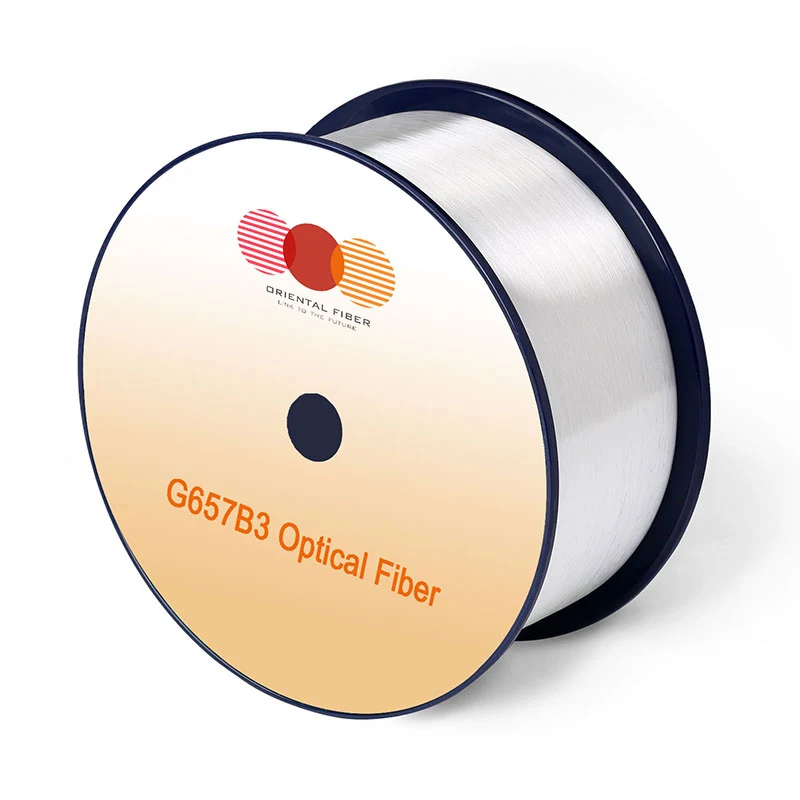

Serat Optical Tunggal-Tunggal G.657.B3

Karakteristik

Kahanan

Speci Fi Ed Nilai

Unit

Optik Karakteristik

Attenuation

1310nm

≤0.35

[DB / km]

1383NM (sawise H2-tuwa)

≤0.35

[DB / km]

1550nm

≤0.21

[DB / km]

1625NM

≤0.23

[DB / km]

Attenuation vs dawane gelombang

Max. α Di FF ERE

1285-1330nm, ing Referensi kanggo 1310nm

≤0.03

[DB / km]

1525-1575nm, ing Referensi kanggo 1550nm

≤0.02

[DB / km]

Nol Gelombang Penyebaran (λ0)

-

1300-1324

[nm]

Nol Leres lebar (S0)

-

≤0.092

[PS / (NM2 · km)]

PMD

Maksimal Serat individu

-

≤0.1

[PS / √km]

Nilai Desain Link (M = 20, Q = 0,01%)

-

≤0.06

[PS / √km]

Khas Regane

-

0.04

[PS / √km]

Kabel Gelombang Cuto FF (λcC)

-

≤1260

[nm]

Mode Lapangan diameter (mfd)

1310nm

8.2-9.0

[μm]

1550nm

9.1-10.1

[μm]

E FF Grup Refraksi Ekspilitas (NE FF)

1310nm

1.468

-

1550nm

1.469

-

Titik Discontinume

1310nm

≤0.05

[DB]

1550nm

≤0.05

[DB]

Geometris Karakteristik

Cladding Diameteripun

-

125,0 ± 0,7

[μm]

Cladding Non-Circularity

-

≤0.7

[%]

Lapisan Diameteripun

-

235-245

[μm]

Cladding lapisan Kesalahan Konsentris

-

≤12.0

[μm]

Lapisan Non-Circularity

-

≤6.0

[%]

Cladding inti Kesalahan Konsentris

-

≤0.5

[μm]

Curl (Radius)

-

≥4

[m]

Pangiriman Dawane

-

Munggah kanggo 25.2

[Km / reel]

Karakteran Lingkungan

1310nm, 1550nm & 1625NM

Suhu Katergantungan didorong Attenuasi

-60 ℃ nganti + 85 ℃

≤0.05

[DB / km]

Kelembapan suhu Attenuasi sing didorong muter

-10 ° C TO + 85 ° C, 98% RH

≤0.05

[DB / km]

Watersoak Katergantungan didorong Attenuasi

23 ° C, 30 dina

≤0.05

[DB / km]

Lembab Perlontanan Kalor Dipinteras Attenuasi

85 ° C lan 85% RH, kanggo 30 dina

≤0.05

[DB / km]

Garing Panas tuwa

85 ℃, 30 dina

≤0.05

[DB / km]

Mekanik IceCi Cation

Bukti Tes

-

≥9.0

[N]

-

≥1.0

[%]

-

≥100

[Kpsi]

Macro-bend Mundhut mundhut

1 giliran mandrel saka Radius 10 mm

1550nm

≤0.03

[DB]

1 Giliran mandrel 10 mm radius

1625NM

≤0.1

[DB]

1 Muter mandrel saka radius 7,5 mm

1550nm

≤0.08

[DB]

1 giliran mandrel saka 7.5 mm Radius

1625NM

≤0.25

[DB]

1 Nguripake mandrel saka radius 5 mm

1550nm

≤0.15

[DB]

1 Nguripake mandrel saka radius 5 mm

1625NM

≤0.45

[DB]

Lapisan Pasukan Strip

khas Kekuwatan rata-rata

1.5

[N]

Puncak meksa

1.3-8.9

[N]

Dinamis Parameter lemes (nd)

-

≥20

-
