Kinerja mekanik lan suhu sing apik
Tube longgar kekuatan dhuwur sing tahan hidrolisis
Senyawa Isi Tube Khusus Mesthekake Perlindhungan Serat Kritis
Rintangan lan keluwesan crush
PSP nambahake kelembapan
Loro kabel baja paralel njamin kekuwatan tissile
Diameter cilik, bobot entheng lan instalasi sing ramah
Dawane segmen sing luwih dawa bisa diprodhuksi

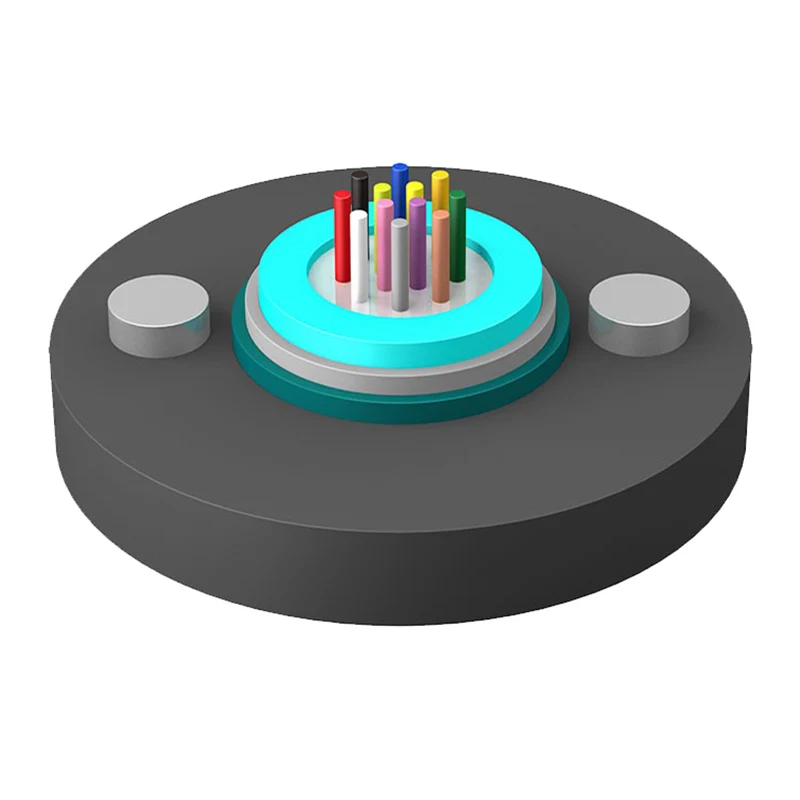

GYXT / GYJSW CABLE Tutuake standar YD / T 769.
1. Serat
2 .. Bundel Tube
3. Senyawa Isi Tube
4 .. tabung longgar
5. Kawat baja
6. Bahan-bahan pamblokiran banyu
7. PSP
8. PE SHEATH
|
Jinis kabel (Tambah 2 serat) |
Count regiber |
Bobot kabel (Ref) (kg / km) |
Kekuwatan tensile Jangka panjang / jangka pendek (N) |
Rintangan crush Jangka panjang / jangka pendek (N / 100mm) |
Bending radius Statik / Dinamis (mm) |
|
GYXS / GYXT-2 ~ 12XN |
2 ~ 12 |
82 |
600/1500 |
300/1000 |
10d / 20d |
|
GYXS / GYXT-14 ~ 24XN |
14 ~ 24 |
127 |
|||
|
GYXS / GYXT-2 ~ 12XN |
2 ~ 12 |
124 |
1000/3000 |
||
|
GYXS / GYXT-14 ~ 24XN |
14 ~ 24 |
147 |
Simpenan / Suhu operasi: -40 ℃ - + 70 ℃
|
Jinis serat |
Attenuation (+ 20 ℃) |
Bandwidth |
Aperture angka |
Gelombang gelombang gelombang gelombang λcc |
||||
|
@ 850nm |
@ 1300nm |
@ 1310nm |
@ 1550nm |
@ 850nm |
@ 1300nm |
|||
|
G.652 |
--- |
--- |
≤0.36db / km |
≤0.22db / Km |
--- |
--- |
--- |
≤1260nm |
|
G.655 |
--- |
--- |
≤0.40db / km |
≤0.23db / km |
--- |
--- |
--- |
≤1450nm |
|
50 / 125μμm |
≤3.3db / km |
≤1.2db / km |
--- |
--- |
≥500mhz · km |
≥500mhz · km |
0.200 ± 0,015 wis |
--- |
|
62.5 / 125μm |
≤3.5db / km |
≤1.2db / km |
--- |
--- |
≥200MHZ · km |
≥500mhz · km |
0.275 ± 0,015 wis |
--- |
a. Suffix XN nuduhake jinis serat
b. Pengaturan warna serat lan tabung kasebut ditemtokake ing meja identifikasi warna
c. Kabel optik serat uni-tabung ora kudu nyimpen ing lingkungan ruangan luwih saka 6 wulan supaya tetep kabel Reel Negara sing apik
